Bottles and Cans Filling Capping Conveyor Transport

Bottles and Cans Filling Capping Conveyor Transport

Get a Quote
  1. In terms of structural design, the conveying system adheres to the transmission mode and adoptsthe modular design of conveying units. The combination, arrangement and connection of eachconveying unit module are more simple and convenient, which can be more widely adapted to thepersonalized plane layout of each customer's factory, making the installation and maintenance of thewhole conveying production line more convenient.
  2. The side plates of the conveyor chain frame are uniformly made of 2.5mm thick 304 stainless steelwire drawing plate, which ensures the beauty of the outer surface and can resist the corrosion of acidand alkali at the same time. Except for the main transmission shaft, other supports and connectingfasteners are made of 304 stainless steel.
  3. The conveyor line adopts a new type of low friction material modular mesh plate chain as theconveyor carrier. The transition gap between the two chain plates of adjacent transmission is smallerthan the original structural design, and the flatness of the whole chain plate of the whole line can begreatly improved. At the same time, the thickness of the chain plate is thicker than the traditionalchain plate, which greatly improves the bearing capacity and service life of the chain plate. Theconveying mesh chain is mainly used for light load conveying of pet or other conveying containersthat are not easy to be damaged, which can greatly improve the stability of conveying.
  4. In the production and transportation line, the magnetic turning chain plate is used to realize theturning, which can more conveniently replace and maintain the conveying chain plate. At the sametime, it is also convenient to clean the dirt in the turning guide rail, which greatly improves themaintenance and sanitary conditions of the whole line. The magnetic turning guide rail adopts 5million molecular weight ultra-high molecular weight polyethylene, which greatly reduces thefriction coefficient and improves the service life.
  5. The new high plate guardrail with aluminum alloy lining is adopted for the whole line, whichimproves the installation straightness and strength of the guardrail of the whole line, and has a widerrange of adaptability to the bottle type. At the same time, combined with the positioning design of the guardrail support new structure, it facilitates the on-site installation and adjustment, ensures theaccurate control of the gap between the guardrails, and improves the support of the bottle type withspecial diameter height ratio or special shape in the high-speed impact section.
  6. Centralized lubrication is adopted for the whole line, and the lubricating liquid is centrallyprovided by the lubricating station, and the lubricating liquid is evenly sprayed on the chain platethrough the nozzle. This method can avoid the disadvantages of frequent replacement of lubricatingfluid and poor sanitary conditions caused by transmission water bath lubrication.
  7. In the new design, the design of the traditional loop system is changed, many complex loopdevices are abandoned, and the loop system becomes simpler. The outer rubber ring of the loopwheel greatly reduces the running noise of the chain plate, increases the friction between the loopwheel and the chain plate, reduces the friction between the surface of the chain plate and the loopwheel, protects the conveying surface of the chain plate and increases the service life of the chainplate.
  8. Multiple groups of control signals and detection devices are installed along the whole line toensure that the whole transmission line is in a controllable state, and feedback linkage is establishedwith front and rear traveling equipment to provide automatic speed reduction, speed increase andstop signals for each single machine, so as to improve the transmission efficiency of the whole line.

Technical Parameters(Customize according to requirements)

Item Parameter
Maximum conveying speed (non lubricated) Follow actual situation
Maximum conveying speed (lubrication) 180
Minimum turning radius 650mm
Maximum climbing and descending angle (non lubricated) 4.5°
Maximum climbing and descending angle (lubrication) 2.5°
Lane spacing 85mm
Chain Width 83.8mm
Chain Thickness 8.7mm
Chain plate pitch 25.4mm
Gear motor SEW
Energy efficiency grade of motor IE2
Conveyor chain plate Domestic
Conveyor chain plate ABB/Danfoss
Low voltage electrical components Siemens + Schneider

Company

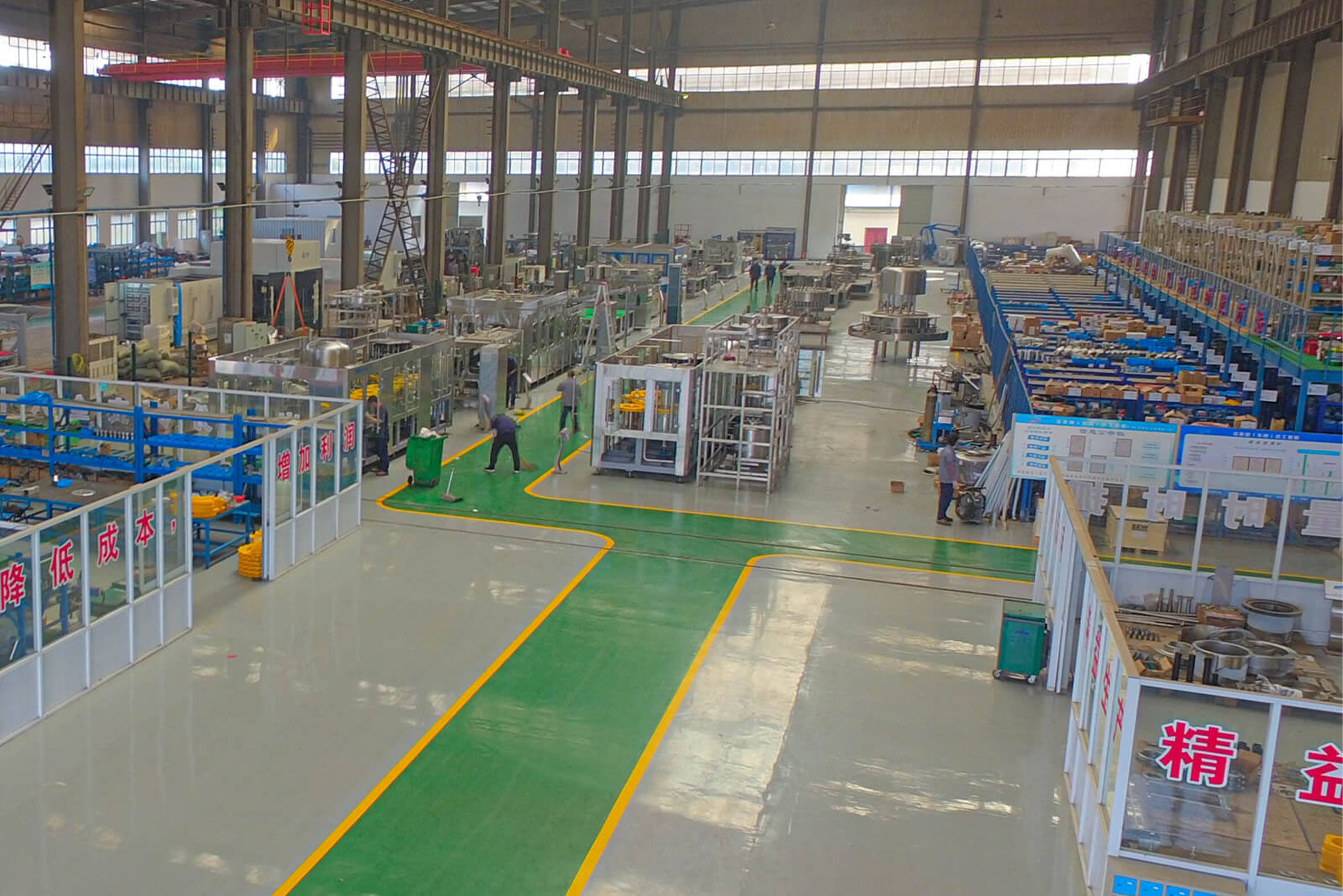

filling machine factory1.jpg

With over 20 years of industry experience, we have established ourselves as a leading provider of beverage production line solutions worldwide. Our state-of-the-art manufacturing facility spans over 50,000 square meters and is equipped with advanced machinery and technology.


We pride ourselves on our commitment to quality, innovation, and customer satisfaction. Our team of experienced engineers and technicians work closely with clients to understand their specific needs and deliver customized solutions that exceed expectations.

FAQ

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality,our Engineer Team with over 20 year's experience,welcome to visit!
Q2.How can I know your machine has good quality?
A2:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q3:What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 15 months guarantee and supply life-long technical support.
Q4: When can I get my machine after I paid?
A4: The delivery time is based on the exact machine you confirmed.
Q5: How can I install my machine when it arrives?
A5: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q6: How about the spare parts?
A6: After we deal down all the things, we will offer you a spare parts list for your reference.
Q7: How to join EQS and become an agent?
A7: We sincerely invite you to become our filling machine agent and jointly expand the market. By contacting us, submitting company information for qualification evaluation, and ultimately signing an agency agreement, you will receive comprehensive product training and market support.
