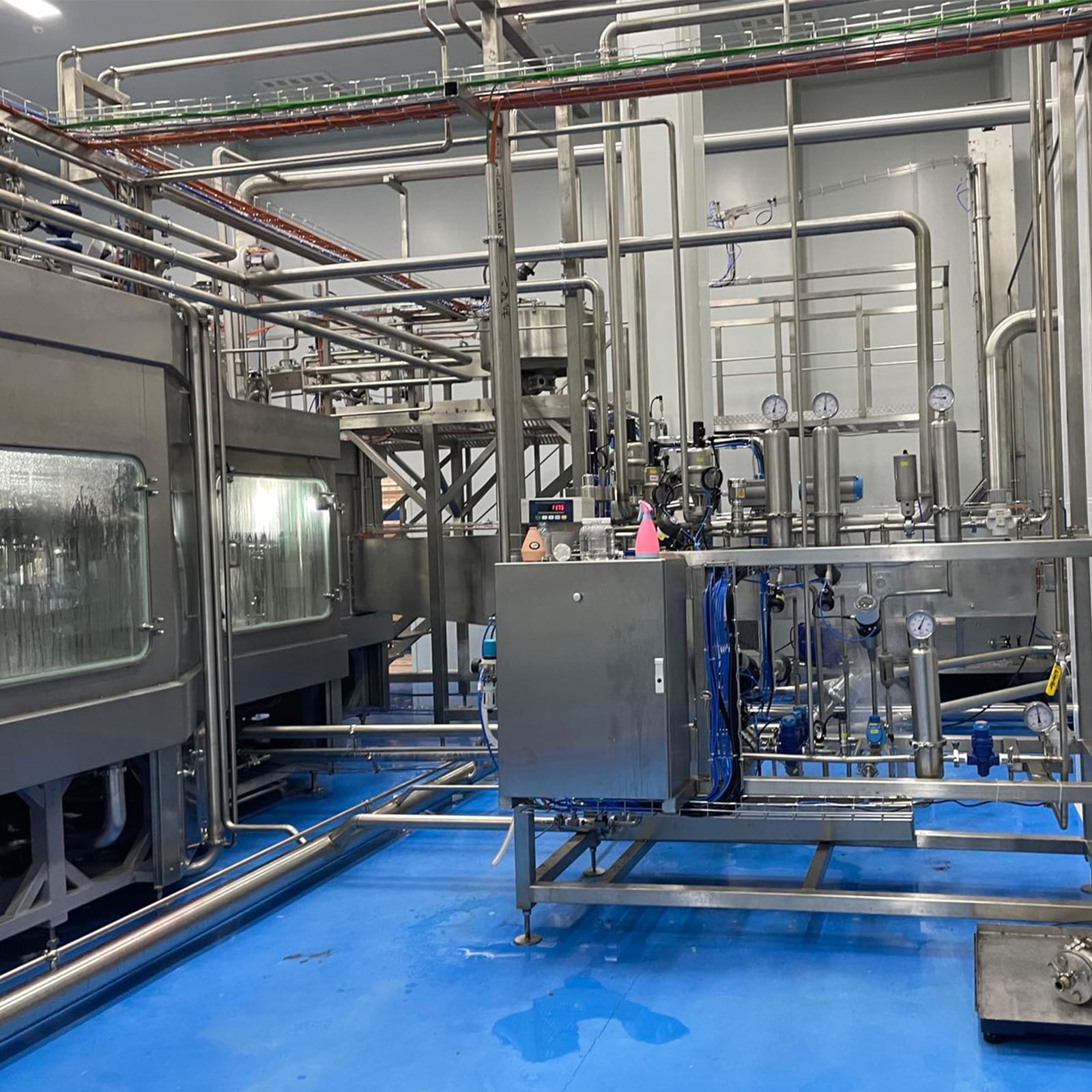

Fully Automatic Aseptic Filling Machine Ensuring Sterile and Safe Production

How Fully Automatic Aseptic Filling Machines Achieve Uninterrupted Sterility

Closed-System Architecture: Isolators, Robotics, and VHP Decontamination Integration

Fully automatic aseptic filling machines maintain sterility through closed-system engineering. Isolators create physical barriers between products and operators, while robotic arms handle vial transfer and filling with micron-level precision—eliminating human intervention, the primary contamination vector in traditional cleanrooms. Integrated vaporized hydrogen peroxide (VHP) systems decontaminate surfaces with 6-log spore reduction efficacy, validated against resistant organisms like Geobacillus stearothermophilus. Continuous positive pressure differentials (≥15 Pa) prevent airborne ingress, and rapid transfer ports enable material exchange without breaching isolation. These layers of protection sustain uninterrupted processing of sensitive biologics under ISO 5 conditions.

Real-World Performance: Sub-1 CFU/1000 hrs Contamination Control in Rotary Systems

High-speed rotary filling systems demonstrate exceptional contamination control, achieving sub-1 colony forming unit (CFU) per 1000 operational hours. Industry data shows 97% of batches maintain Grade A air quality during filling when combining unidirectional airflow (UDAF) hoods with hermetic sealing. Servo-controlled needle positioning enables “zero-touch” filling accuracy within ±0.5% volume tolerance, while real-time particle monitoring triggers automatic shutdown if ≥5.0μm particles exceed 1 CFU/m³. This performance represents a 20-fold improvement over manual operations and directly supports parametric release compliance under FDA Annex 1 (2022). Continuous environmental verification during 120% maximum runtime simulations further validates system robustness.

Aseptic Filling Process Validation: From Decontamination Protocols to Hermetic Sealing Integrity

Dual-Path Sterilization Strategy: H₂O₂ for Components + Sterile Filtration for Bulk Product

Modern aseptic filling machines implement a dual-sterilization approach to eliminate contamination risks. Critical components like vials and closures undergo vaporized hydrogen peroxide (VHP) treatment, achieving >6-log microbial reduction per USP <797> standards. Simultaneously, bulk biologics pass through sterilizing-grade membrane filters (0.2μm) immediately before filling. This segregated strategy prevents cross-contamination while preserving product stability—and reduces particulate ingress by 99.8% versus single-path systems.

Regulatory Alignment: FDA Annex 1 (2022) and the Phased Transition from RABS to Isolator-Based Aseptic Filling

The updated FDA Annex 1 (2022) mandates isolator-based filling for new facilities by 2025, citing a 70% lower contamination risk versus Restricted Access Barrier Systems (RABS). Key requirements include continuous particle monitoring with ≤1 CFU/m³ thresholds in ISO 5 zones, mandatory hermetic seal validation using helium leak testing, and automated decontamination cycles between batches. This regulatory shift compels manufacturers to upgrade aging RABS lines to achieve closed-system integrity. Validation protocols now require worst-case simulations at 120% runtime to prove contamination control under stress conditions.

Environmental & Regulatory Compliance: Meeting Grade-A UDAF, ISO 14644-1, and GMP Requirements

Bridging the Gap: Particle Monitoring Challenges in High-Speed Aseptic Filling Under ISO Class 5 Conditions

Maintaining ISO Class 5 (Grade A) compliance during high-speed aseptic filling presents critical particle monitoring challenges. Rapid mechanical movements—from vial handling to stopper placement—generate transient particulate spikes that risk breaching the ≤3,520 particles/m³ (≥0.5μm) threshold mandated by ISO 14644-1. Traditional sampling methods struggle with spatial limitations near filling needles, temporal gaps in detecting microsecond-duration events, and false positives from non-viable particles. Advanced photometric counters now enable real-time monitoring at 1-second intervals, with automated UDAF adjustments triggered when counts approach 80% of limits. This integration reduces contamination risks by 63% compared to manual interventions while meeting FDA Annex 1 (2022) requirements for continuous Grade A environmental control—ensuring every batch adheres to GMP sterility standards without compromising throughput.

Validation Rigor: EQ, PQ, and Cleaning Validation for Aseptic Filling Machine Reliability

FDA 483 Trends: Why 78% of Sterile Manufacturing Observations Target Inadequate Performance Qualification

Performance Qualification (PQ) failures account for 78% of FDA 483 citations in sterile manufacturing due to inadequate demonstration of aseptic filling machine reliability during routine operations. Unlike Equipment Qualification (EQ), which verifies proper installation, PQ must prove systems consistently maintain sterility under production conditions—particularly critical for filling biologics and vaccines. When PQ protocols lack worst-case scenario testing (e.g., maximum line speed, minimum vial size), regulators issue observations for unverified contamination control. This trend intensified after FDA Annex 1 (2022) mandated PQ evidence of ≤0.1% probability of non-sterility. Robust PQ includes three consecutive successful production runs, continuous environmental monitoring at ISO Class 5 sites, and statistical process control for fill volume accuracy (±1.5%). Without validated PQ data, manufacturers risk media fill failures, particulate ingress, and regulatory holds.
