36000BPH a to Z Cola Machine Combi Bottling Machine Carbonated Soft Drink Production Line Blowing Filling Capping Machine
36000BPH a to Z Cola Machine Combi Bottling Machine Carbonated Soft Drink Production Line Blowing Filling Capping Machine
36000BPH a to Z Cola Machine Combi Bottling Machine Carbonated Soft Drink Production Line Blowing Filling Capping Machine
36000BPH a to Z Cola Machine Combi Bottling Machine Carbonated Soft Drink Production Line Blowing Filling Capping Machine

36000BPH a to Z Cola Machine Combi Bottling Machine Carbonated Soft Drink Production Line Blowing Filling Capping Machine

What is Blowing Filling Capping Combiblock

The Blowing-Filling-Capping Combiblock is one powerful combination, which completes the whole process from preform to bottled, It can decrease intermediate links such as conveying, empty bottle handling, stacking and storage processes, improve packaging sanitary conditions, reduce cross-contamination, increase overall operating efficiency, save energy consumption, so that it cuts overall production costs.

●Improving overall efficiency
●Cutting equipment investment
●Reducing the investment in plant
Get a Quote

blowing filling capping.png

Blowing System
Bottle blowing high-pressure gas recovery is applied to low-pressure gas needs. The turnover type heating furnace structure saves 15% energy. Bottle blowing has pressure detection and defective bottle removal function. The operating status of the entire machine can be remotely monitored.

Adopting forged high-strength mould base, the equipment operates efficiently and stably. Regarding cam guide rail, we have own patent technology, which it has low vibration, low noise, stable and reliable operation advantage.
36000bph a to z cola machine combi bottling machine carbonated soft drink production line blowing filling capping machine-0

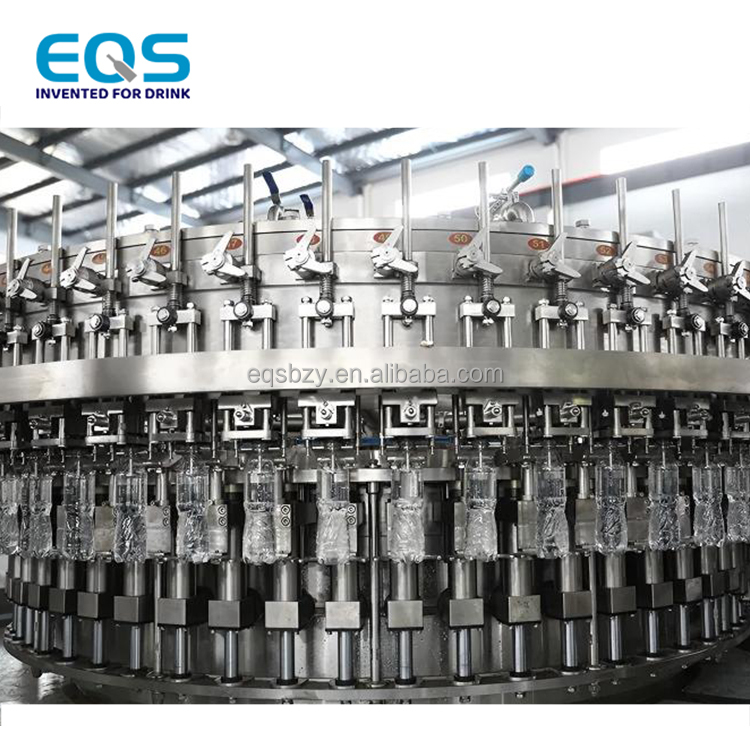

Filling System
After the bottles are completely cleaned and dried by dripping, they are sent to the filling machine by the star wheel. When the bottle - presence signal detects the presence of a bottle, after passing through certain workstations, the filling valve opens and filling begins. At the same time, the flowmeter measures according to the set filling flow rate. When the set capacity is reached, the flowmeter sends a valve - closing signal, and the filling ends. The filled bottles are sent to the capping machine by the filling - and - capping dial wheel.
36000bph a to z cola machine combi bottling machine carbonated soft drink production line blowing filling capping machine-1

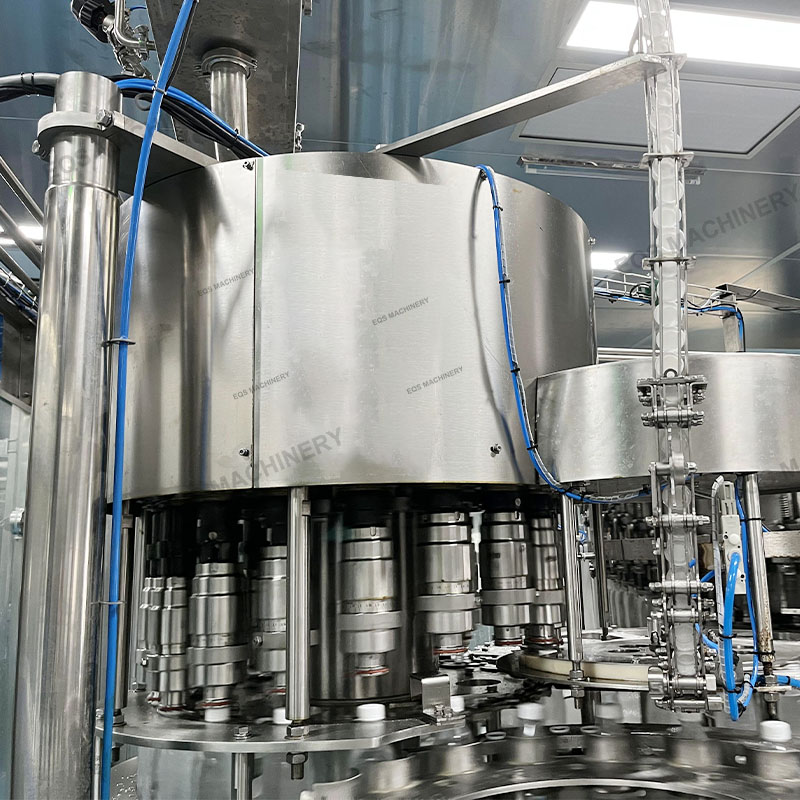

Capping System
Only the capping head part of the capping machine is located in the clean room, while the rest of the transmission parts are arranged outside the clean room. A water - seal groove is set between the rotating part of the capping machine and the isolation cover to prevent outside air from entering the isolation room. The capping machine is equipped with a cap - stopping cylinder, which will not supply caps when there is no bottle; and it is equipped with a cap - shortage detection sensor, which will automatically stop the machine when there is a shortage of caps. The capped products are sent to the conveyor belt by the star wheel for delivery.


Technical Parameters

Item

Parameter

Working position of filling heads

196

Working position of capping heads

28

Production capacity

36,000BPH 0.5L for carbonated drink

Bottle bottom cooling mode

Mixed atomization cooling of air and water

Bottle bottom cooling medium

Chilled water

Filling form

Flow-meter electronic isobaric type

Applicable bottle type

PET Bottle

Available cap type

32mm,38mm, sport cap

Filling temperature

0-4℃,10-12℃ max

Filling precision

 <0.5%

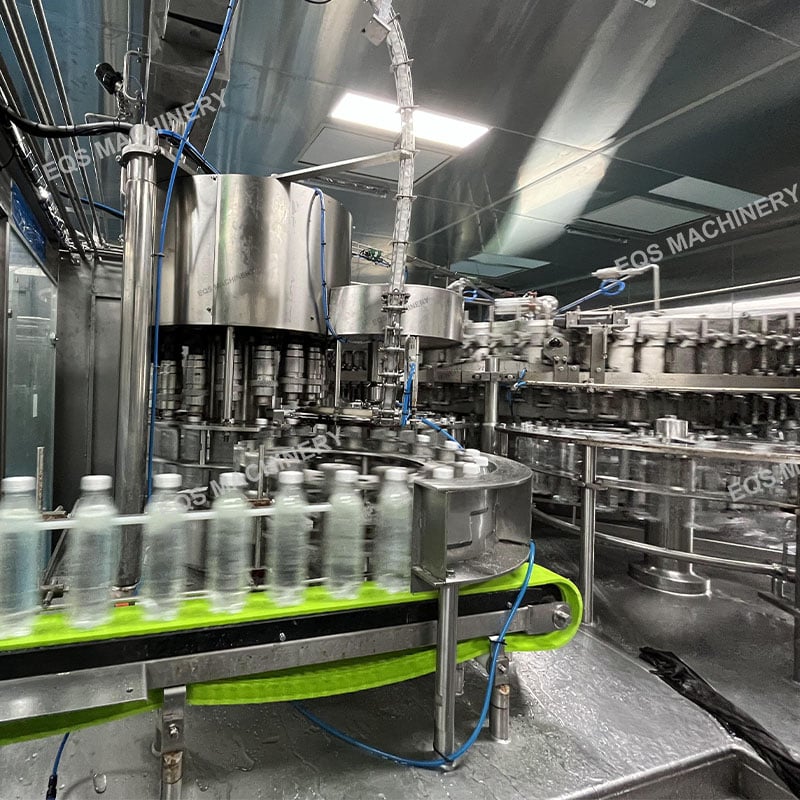

Complete Line Solution

36000bph a to z cola machine combi bottling machine carbonated soft drink production line blowing filling capping machine-2

48000BPH Ultra-Clean Water and Ultra-Clean 36000BPH Carbonated Drink Filling Production Line
1.Water Treatment System 2.CIP System 3.Blending System 4.Air Compressor System 5.Heating Oven and Host Machine of Bottle Blowing Machine 6.Oil Heating Machine 7.Water Chiller 8.Ultra-Clean Filling Machine 9.Liquid Level and Capping Detection Machine 10.Bottle Warmer 11.CO2 Carbonated Machine 12.OPP Hot Glue Labeling Machine13.Date Printer 14.Label and Date Printing Detection Machine 15.Automatic Shrink Film Wrapping Machine 16.Palletizing Machine 17.On-Line Winding Machine
36000bph a to z cola machine combi bottling machine carbonated soft drink production line blowing filling capping machine-3

Company

filling machine factory1.jpg

With over 20 years of industry experience, we have established ourselves as a leading provider of beverage production line solutions worldwide. Our state-of-the-art manufacturing facility spans over 50,000 square meters and is equipped with advanced machinery and technology.


We pride ourselves on our commitment to quality, innovation, and customer satisfaction. Our team of experienced engineers and technicians work closely with clients to understand their specific needs and deliver customized solutions that exceed expectations.

FAQ

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality,our Engineer Team with over 20 year's experience,welcome to visit!
Q2.How can I know your machine has good quality?
A2:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q3:What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 15 months guarantee and supply life-long technical support.
Q4: When can I get my machine after I paid?
A4: The delivery time is based on the exact machine you confirmed.
Q5: How can I install my machine when it arrives?
A5: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q6: How about the spare parts?
A6: After we deal down all the things, we will offer you a spare parts list for your reference.
Q7: How to join EQS and become an agent?
A7: We sincerely invite you to become our filling machine agent and jointly expand the market. By contacting us, submitting company information for qualification evaluation, and ultimately signing an agency agreement, you will receive comprehensive product training and market support.
