Full Automatic 9000BPH Carbonated Pet Bottle Washing Filling Capping Machine

Full Automatic 9000BPH Carbonated Pet Bottle Washing Filling Capping Machine

Capacity:2000-24000BPH
Bottle Size:250ML-2000ML
Function:Washing Filling Capping

Turnkey Carbonated Soft Water Bottling Line

Water Treatment--Carbonated Blending System--Carbonated Mixer--Carbonation and Water Chiller System--CIP System--Carbonated Filling Machine(Rinsing-Filling-Capping)-- Labeling Machine-Date Printer--Shrink Film Wrapping Machine--Palletizing--Warehouse

Technical Parameters

Model	DCGF14-12-5	DCGF18-18-6	DCGF24-24-6	DCGF32-32-8	DCGF40-40-10
Rinsing Heads	14	18	24	32	40
Filling Heads	12	18	24	32	40
Capping Heads	4	6	8	10	12
Capacity(BPH)	2500	4000	6000	9000	14000
Bottle Size	Bottle Height:160-320mm; Bottle Diameter:50-115mm;
CO2 Consumption	18G/100L	18G/100L	18G/100L	18G/100L	18G/100L
Hopper Motor(KW)	0.18	0.37	0.37	0.37	0.75
Blowing(M3/H)	0.3	0.3	0.6	0.6	0.6
Main Motor(kw)	2.2	3	4	5	6
Dimension(mm)	200017402750	236018802750	276022802750	405023852850	403031002850
Weight(KG)	2500	3500	5000	7000	9500

Complete Line Solution

One Stage RO System(1).png

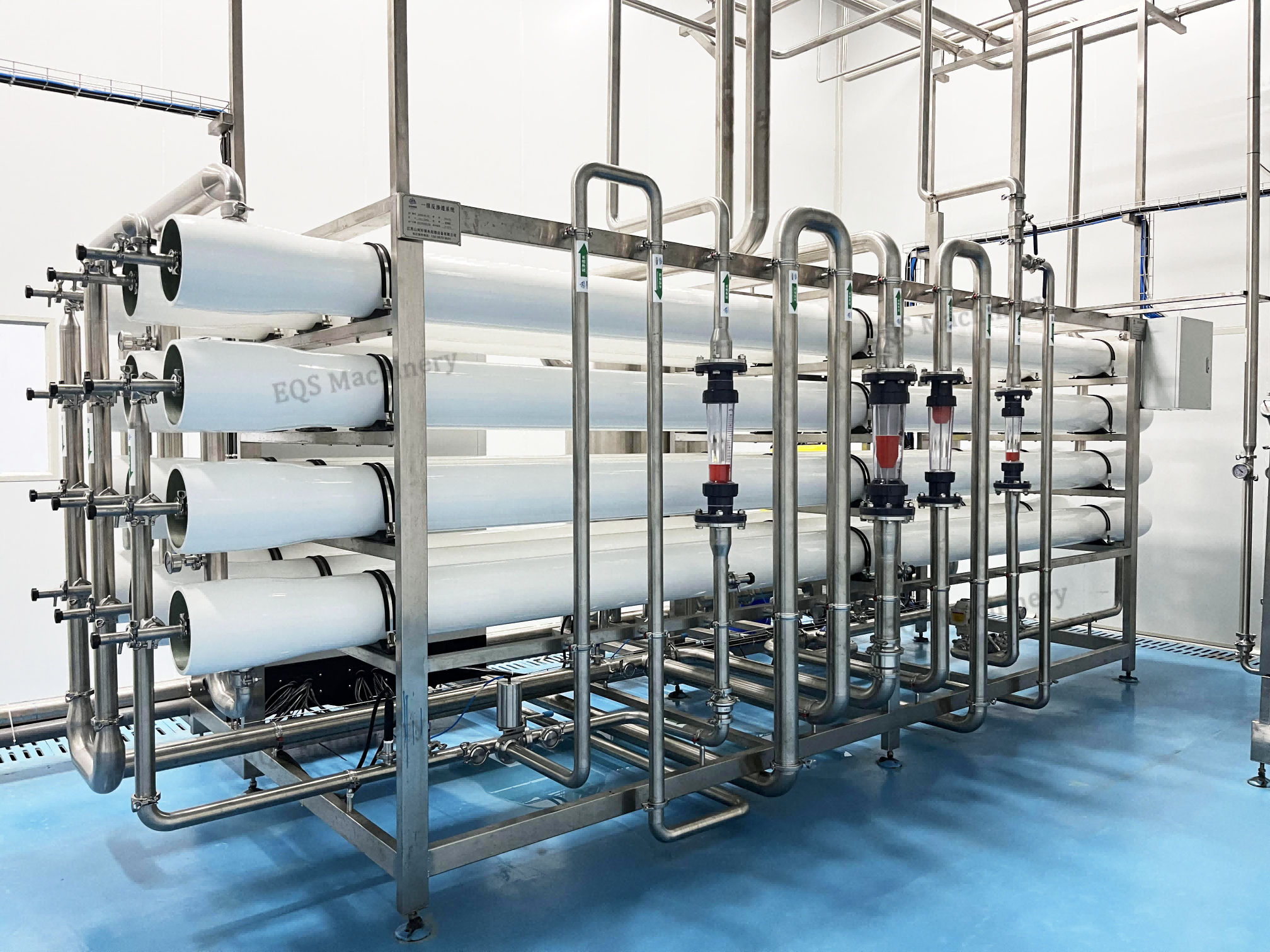

Water Treatment System
According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants.help to reduce the material consumption and maitenance cost .

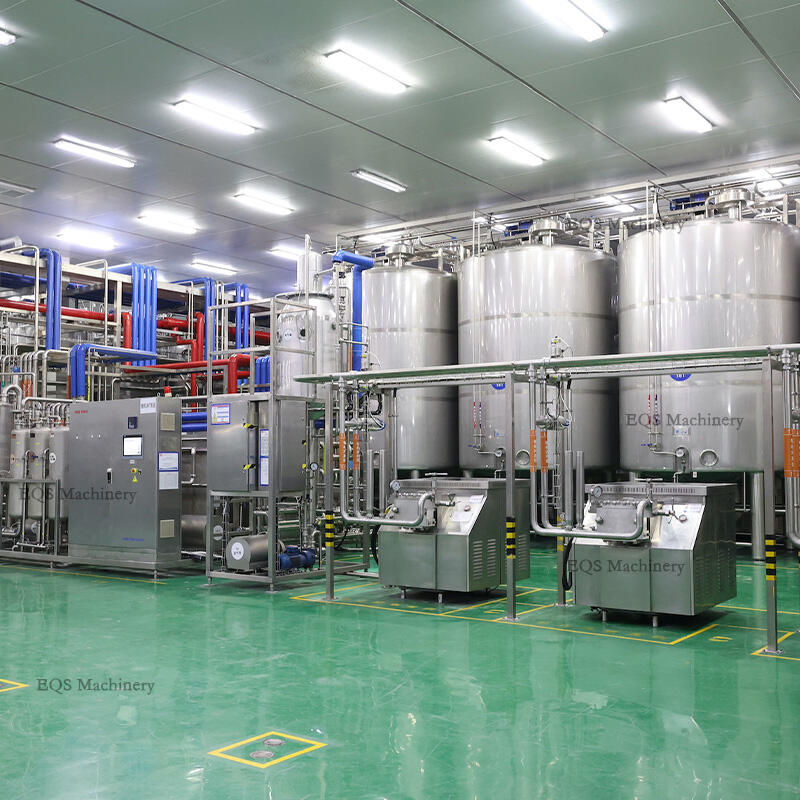

Blending System

The mixing system of the beverage filling production line is used to accurately mix raw materials such as syrup, water, acidizing agent, essence, etc. The consistency of the formula is ensured through high-precision measurement, high-speed mixing and online testing (sugar content/pH). Some products are homogenized and then enter the pasteurization or UHT sterilization process. Finally,they are cooled and temporarily stored in sterile tanks, and standardized production is realized by PLC automatic control. The CIP cleaning system is also provided to ensure health and safety.

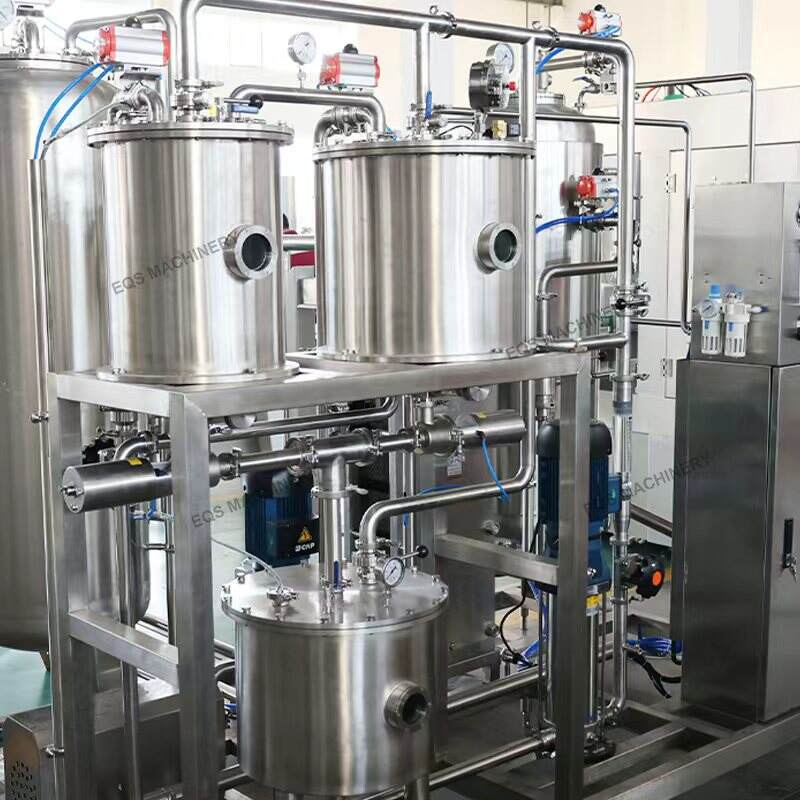

Carbonated Mixer

This model is suitable for producing all kinds of carbonated drinks and fruity aerated drinks containing CO2, and can easily adjust the production capacity and the mixing ratio of water and syrup.All parts in contact with beverages are made of high-quality polished stainless and acid resistant steel, which meets the requirements of food hygiene. The pipeline adopts a closed system, which can meet the requirements of cleaning and disinfection and avoid secondary pollution of materials in the process of transportation.

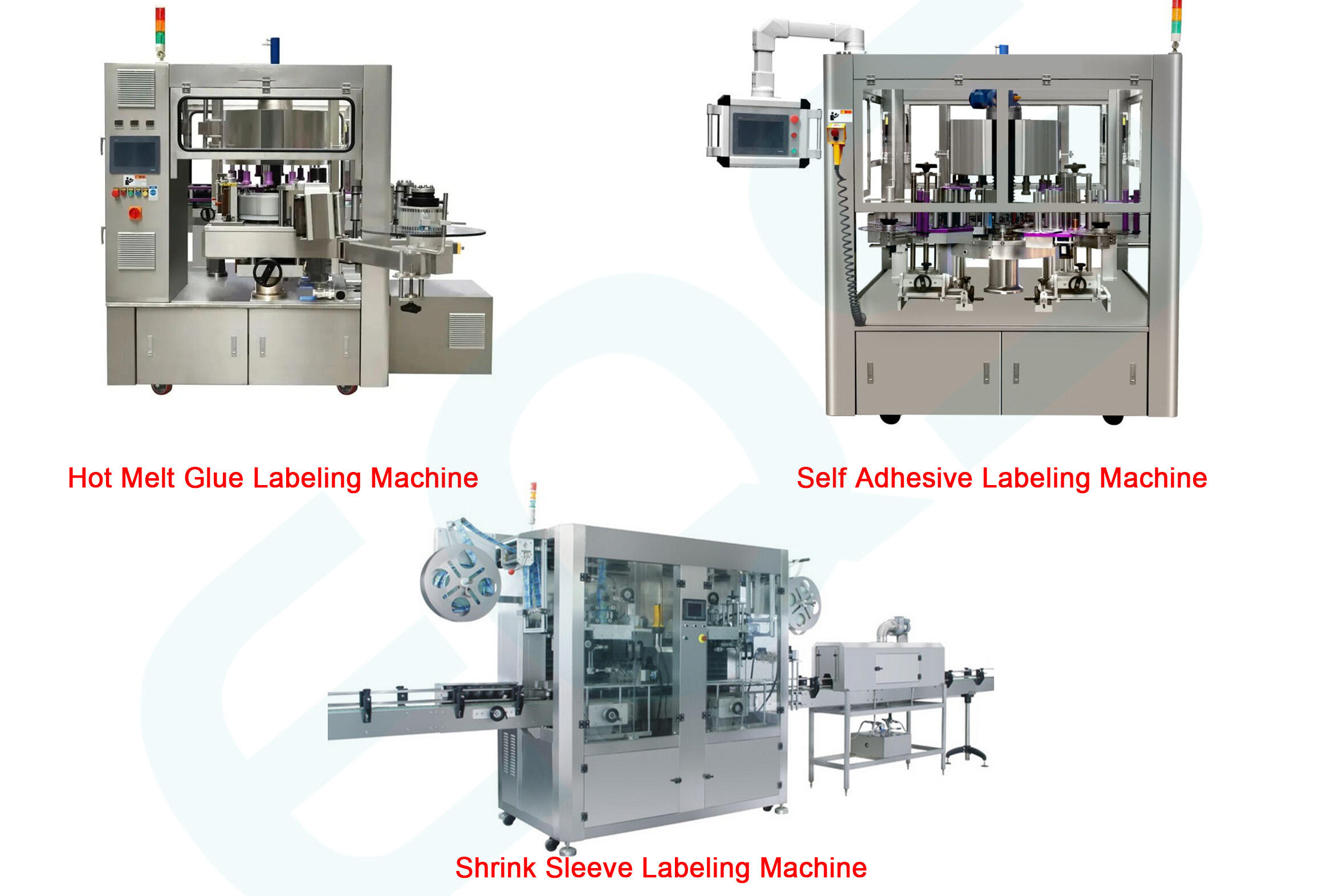

Labeling Machine
The Labeling Machine from EQS Machinery is a state-of-the-art solution for fast, efficient, and accurate labeling of a wide variety of containers and packages. Designed to meet the demanding needs of modern production environments, this machine combines cutting-edge technology with robust engineering to deliver unparalleled performance and reliability.

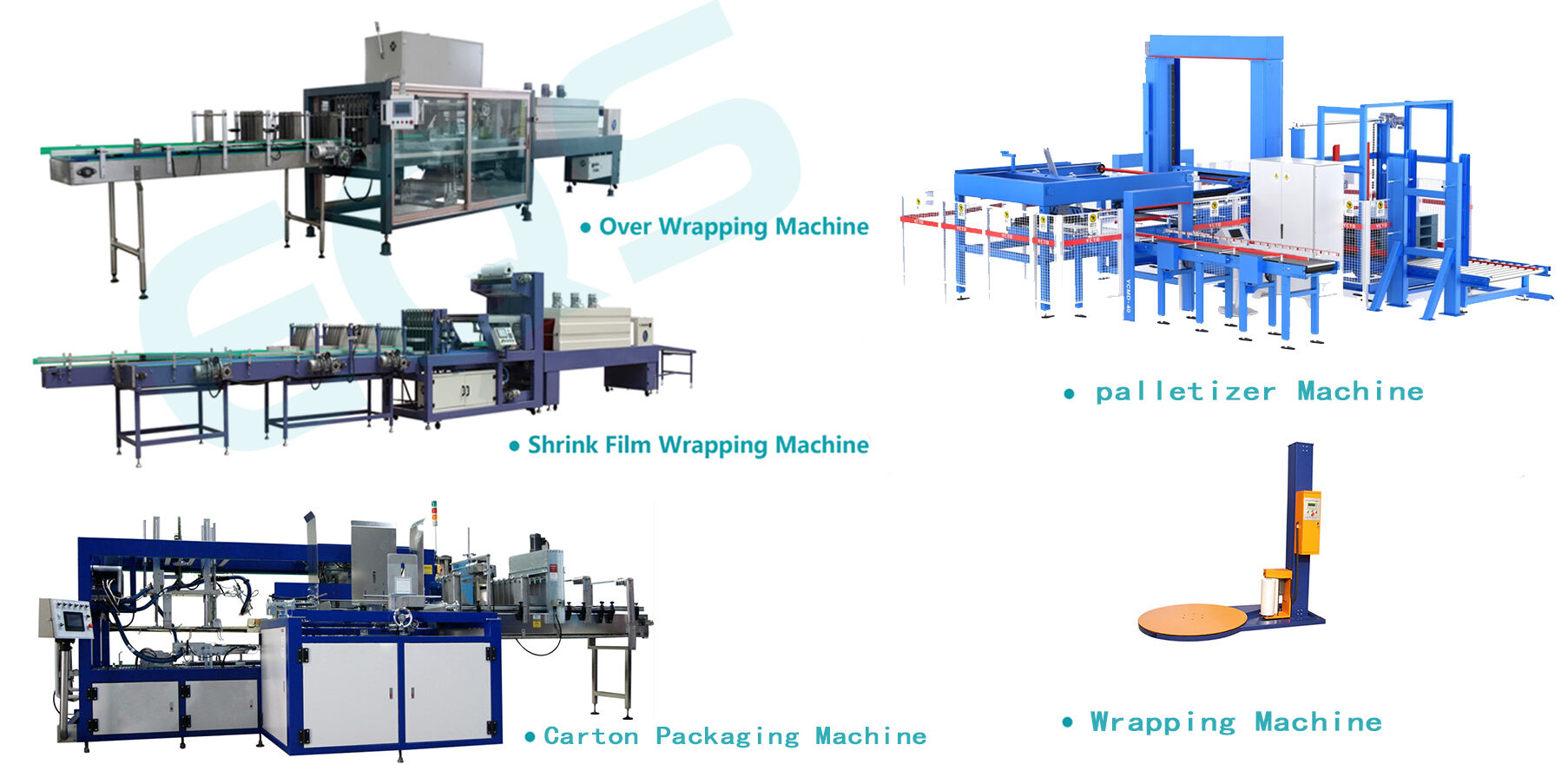

Packaging Machine
We supply the different bottle package design , Film package ,Carton box wrapper ,Film with tray package and so on

Turnkey Project

Ultra-clean csd water.jpg

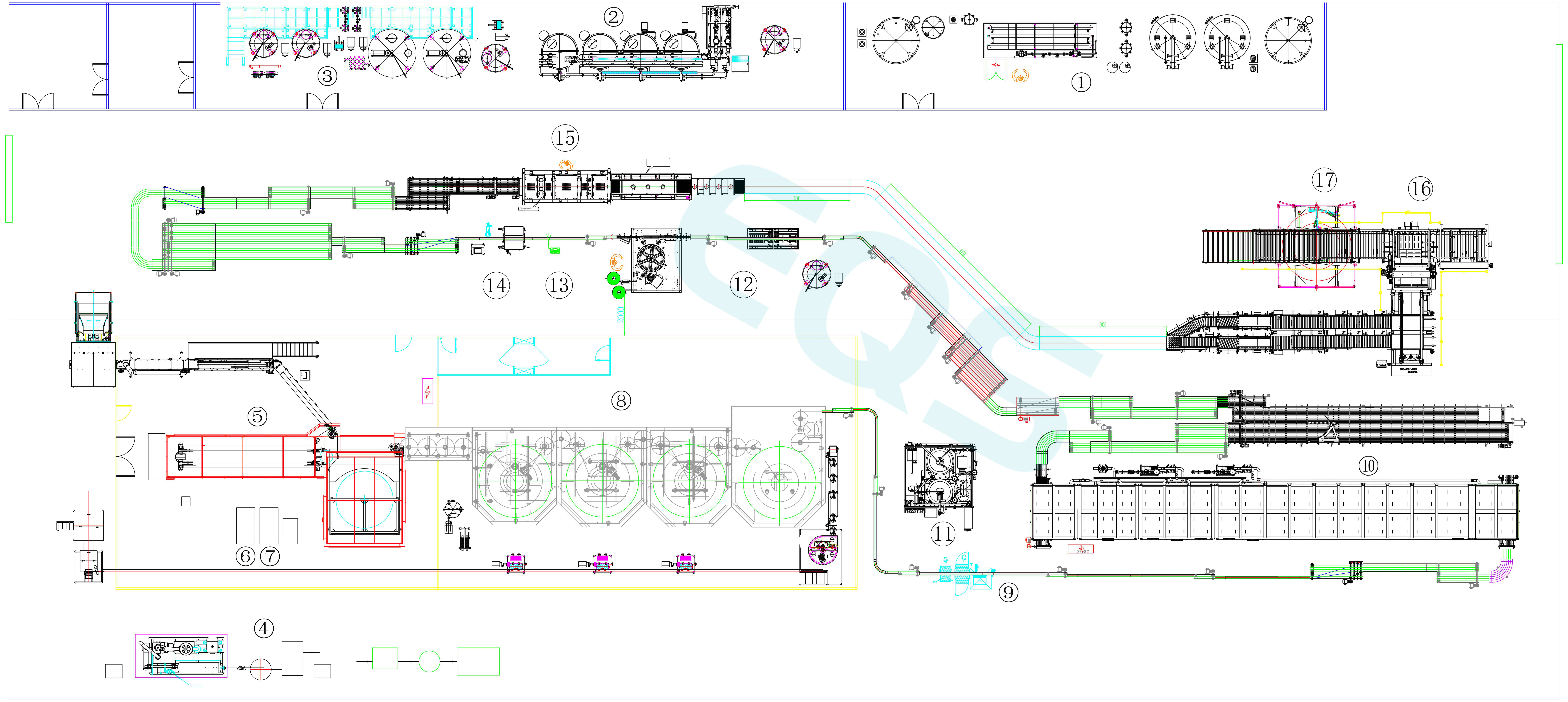

48000BPH Ultra-Clean Water and Ultra-Clean 36000BPH Carbonated Drink Filling Production Line

1.Water Treatment System 2.CIP System 3.Blending Room 4.Air Compressor System 5.Bottle Blowing Machine 6.Oil Heart Machine 7.Water Chiller 8.Ultra-clean Blowing Filling Capping Machine 9.Liquid Level and Capping Detection Machine 10.Bottle Warmer 11.Carbonated Mixer 12.OPP Hot Glue Labeling Machine 13.Date Printer 14.Label and DatePrinting Detection Machine 15.Automatic Shrink Film wrapping Machine 16.Palletizing Machine 17.Online Winding Machine

Company

filling machine factory1.jpg

With over 20 years of industry experience, we have established ourselves as a leading provider of beverage production line solutions worldwide. Our state-of-the-art manufacturing facility spans over 50,000 square meters and is equipped with advanced machinery and technology.

We pride ourselves on our commitment to quality, innovation, and customer satisfaction. Our team of experienced engineers and technicians work closely with clients to understand their specific needs and deliver customized solutions that exceed expectations.

FAQ

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality,our Engineer Team with over 20 year's experience,welcome to visit!
Q2.How can I know your machine has good quality?
A2:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q3:What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 15 months guarantee and supply life-long technical support.
Q4: When can I get my machine after I paid?
A4: The delivery time is based on the exact machine you confirmed.
Q5: How can I install my machine when it arrives?
A5: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q6: How about the spare parts?
A6: After we deal down all the things, we will offer you a spare parts list for your reference.
Q7: How to join EQS and become an agent?
A7: We sincerely invite you to become our filling machine agent and jointly expand the market. By contacting us, submitting company information for qualification evaluation, and ultimately signing an agency agreement, you will receive comprehensive product training and market support.
