15000BPH 500ml PET Bottle Juice and Pure Water Ultra Clean Production Line
15000BPH 500ml PET Bottle Juice and Pure Water Ultra Clean Production Line
15000BPH 500ml PET Bottle Juice and Pure Water Ultra Clean Production Line
15000BPH 500ml PET Bottle Juice and Pure Water Ultra Clean Production Line
15000BPH 500ml PET Bottle Juice and Pure Water Ultra Clean Production Line

15000BPH 500ml PET Bottle Juice and Pure Water Ultra Clean Production Line

Get a Quote


What is Ultra Clean Filling Production Line

Ultra-clean filling is a method based on the core technology of aseptic filling, utilizing a strict sterilization process. This technology ensures that products are not contaminated by microorganisms through filling in a clean environment.

Compared to traditional hot filling, ultra-clean filling uses a lower temperature, which effectively preserves the product's taste and nutritional content while also reducing energy consumption. Furthermore, the lower heat resistance requirement for packaging containers allows for more diverse and lightweight bottle designs, thereby lowering packaging material costs.

The technology also features a modular design, enabling it to be directly connected to a blow molding machine to form an integrated blow-fill-cap monoblock. This not only helps to control costs but also reduces the floor space and labor required. Overall, the ultra-clean filling technology is easy to operate, simple to maintain, and highly reliable.

Technical Parameters(Customize according to requirements)

Item Parameter
Working position of filling heads 40
Working position of capping heads 15
Production capacity 24000BPH 600ml
Product conductivity >20μS/cm
Bottle diameter Φ40mm-Φ108mm
Available bottle height 150mm-340mm
Air source pressure >0.7MPa
Compressed air consumption 1m3/min
Control voltage (DC) 24V
Main motor 9kW(filling part)
Dimension Size(L×W×H) 2800*2300*3100mm (by final production drawing)
Approx weight 6000Kg

Product Details

blowing system.png

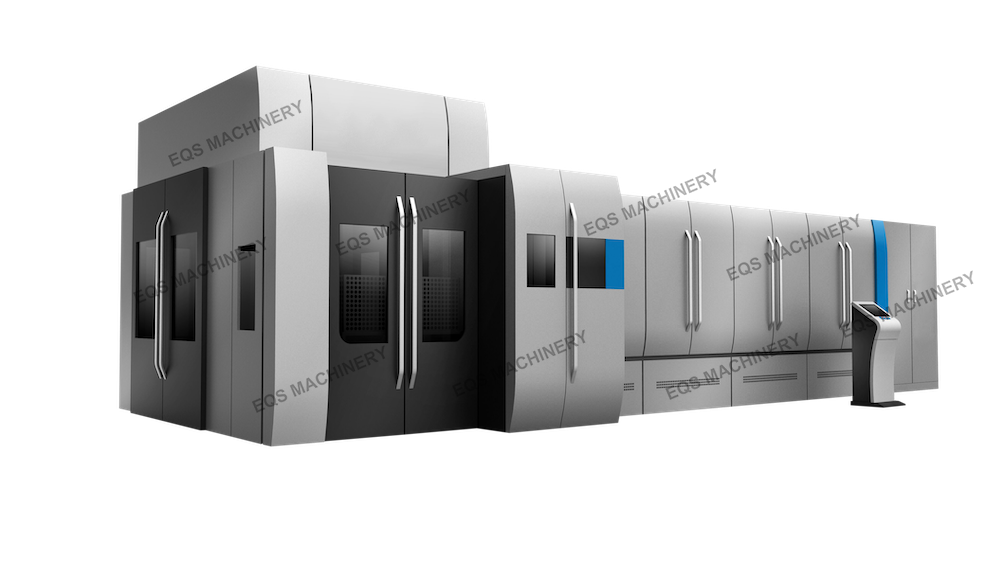

Blowing System

Bottle blowing high-pressure gas recovery is applied to low-pressure gas needs. The turnover type heating furnace structure saves 15% energy. Bottle blowing has pressure detection and defective bottle removal function. The operating status of the entire machine can be remotely monitored.

Adopting forged high-strength mould base, the equipment operates efficiently and stably. Regarding cam guide rail, we have own patent technology, which it has low vibration, low noise, stable and reliable operation advantage.

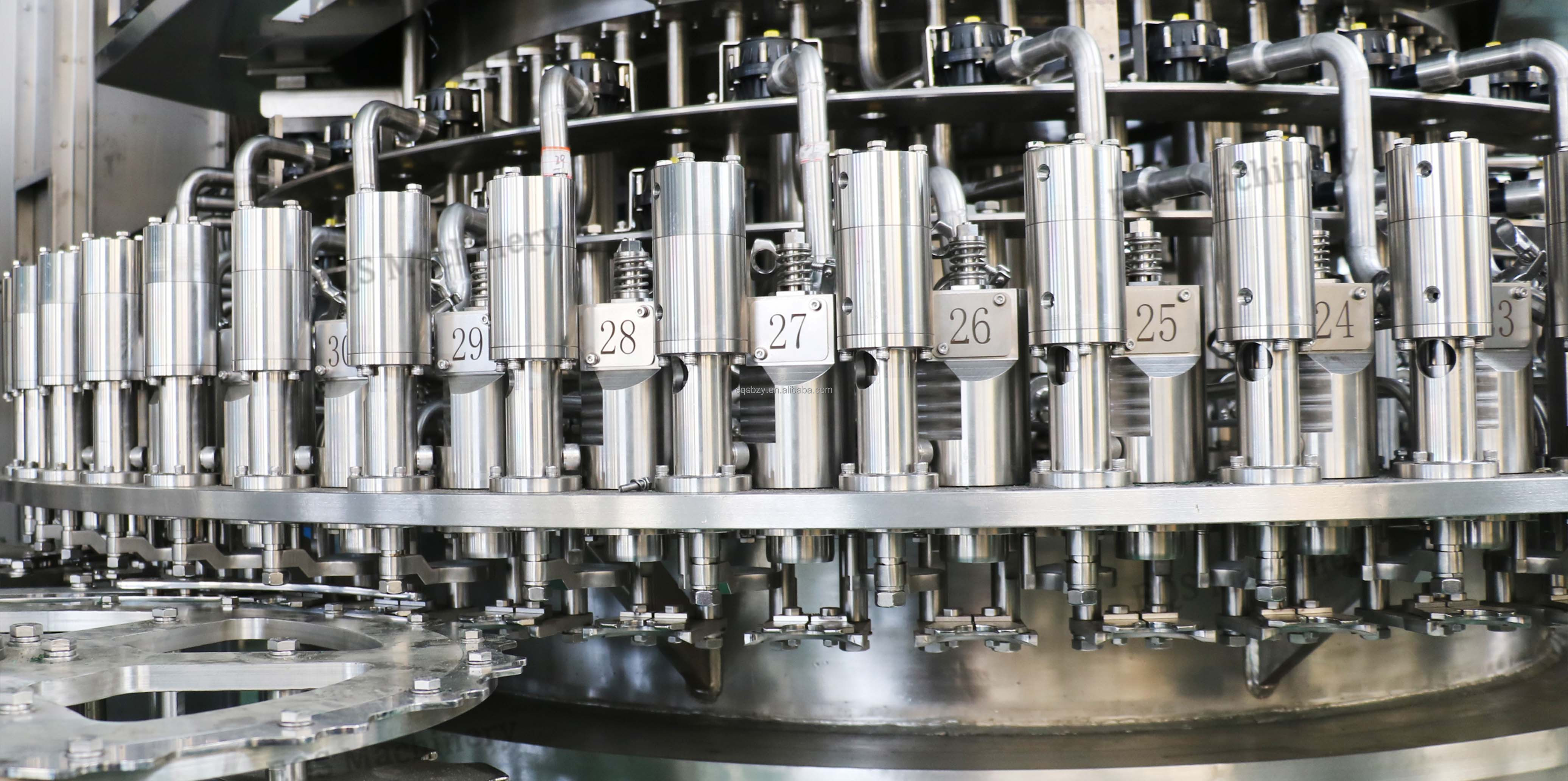

Filling System
After the bottles are completely cleaned and dried by dripping, they are sent to the filling machine by the star wheel. When the bottle - presence signal detects the presence of a bottle, after passing through certain workstations, the filling valve opens and filling begins. At the same time, the flowmeter measures according to the set filling flow rate. When the set capacity is reached, the flowmeter sends a valve - closing signal, and the filling ends. The filled bottles are sent to the capping machine by the filling - and - capping dial wheel.

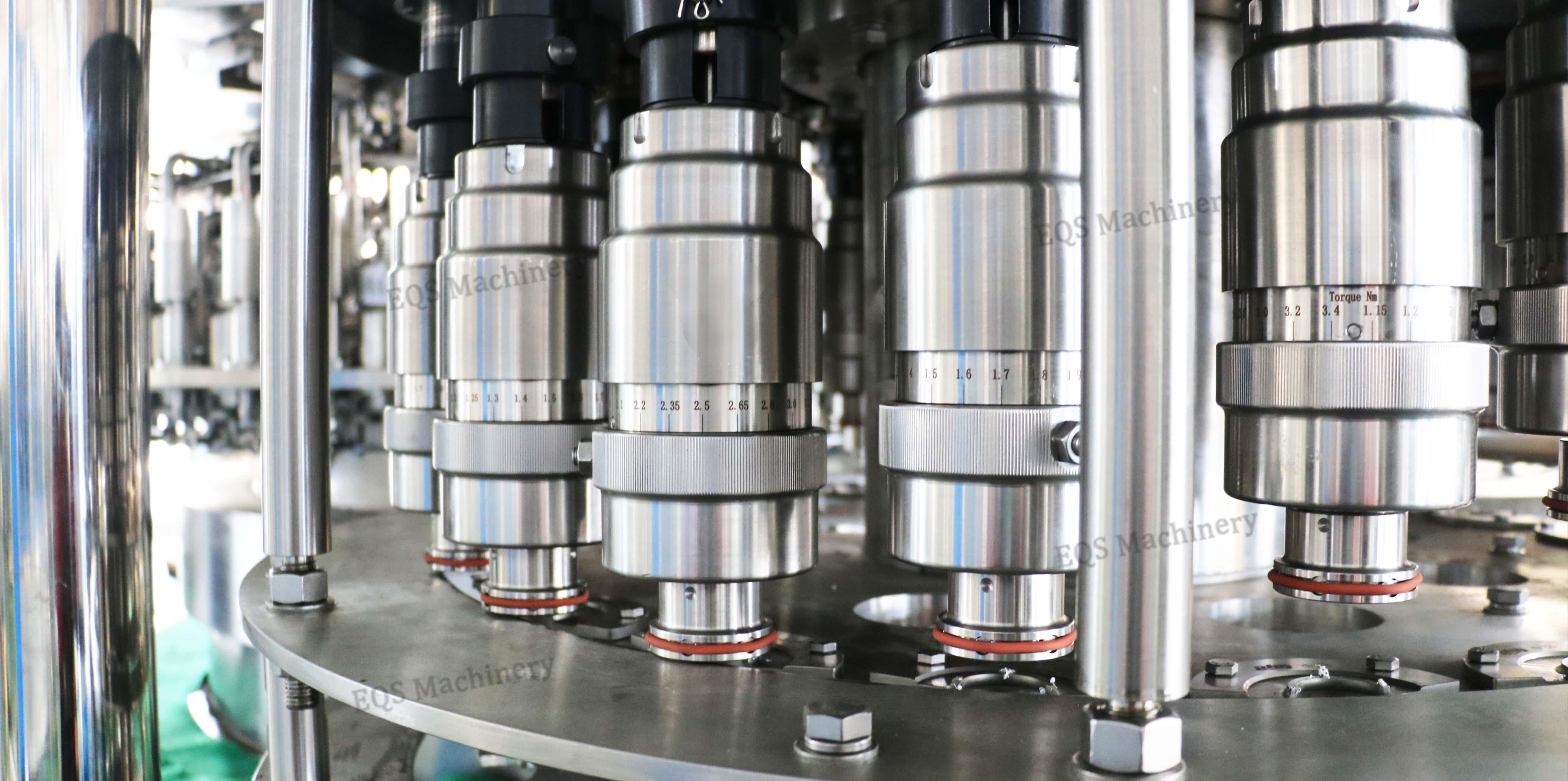

Capping System
Only the capping head part of the capping machine is located in the clean room, while the rest of the transmission parts are arranged outside the clean room. A water - seal groove is set between the rotating part of the capping machine and the isolation cover to prevent outside air from entering the isolation room. The capping machine is equipped with a cap - stopping cylinder, which will not supply caps when there is no bottle; and it is equipped with a cap - shortage detection sensor, which will automatically stop the machine when there is a shortage of caps. The capped products are sent to the conveyor belt by the star wheel for delivery.

Turnkey Project

48000BPH water 36000CSD.jpg

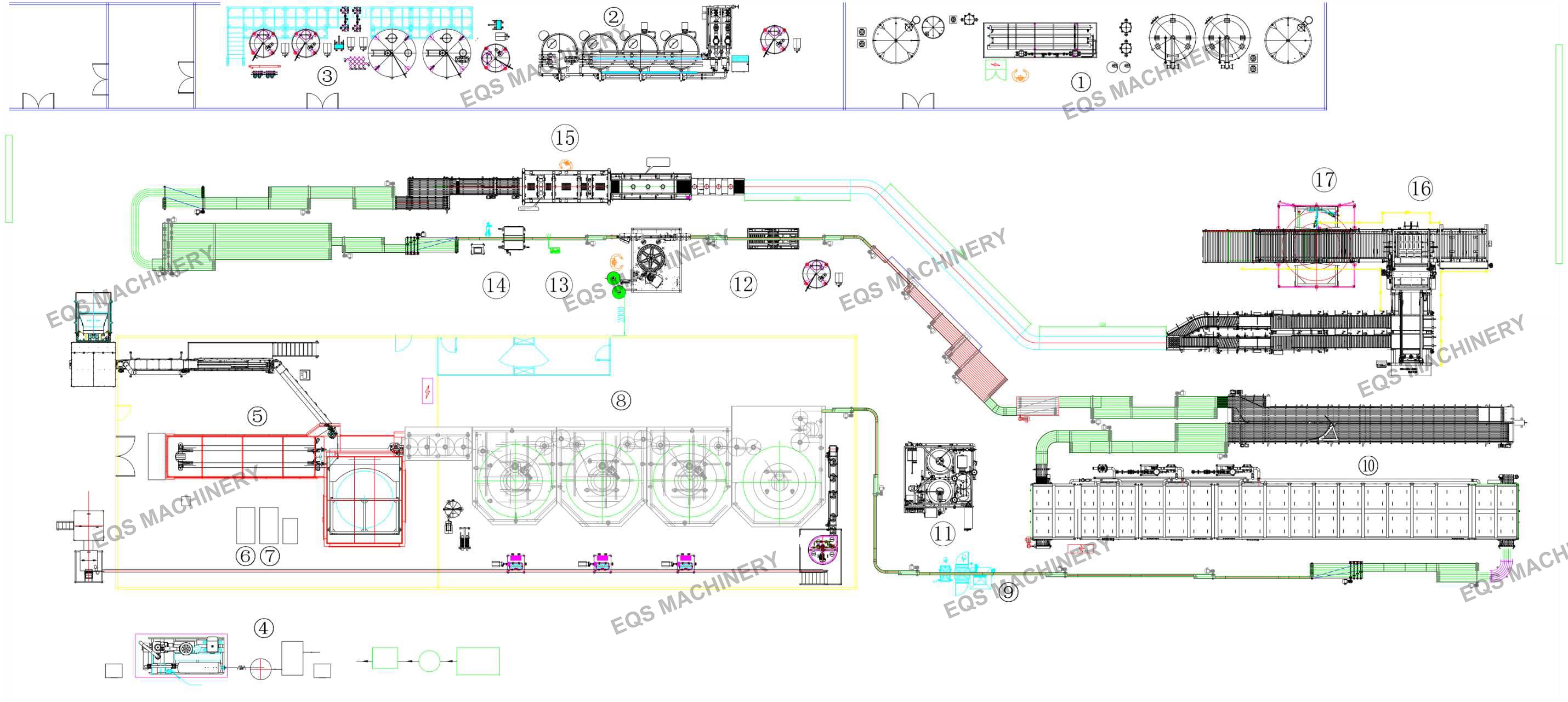

48000BPH Ultra-Clean Water and Ultra-Clean 36000BPH Carbonated Drink Filling Production Line
1.Water Treatment System 2.CIP System 3.Blending System 4.Air Compressor System 5.Heating Oven and Host Machine of Bottle Blowing Machine 6.Oil Heating Machine 7.Water Chiller 8.Ultra-Clean Filling Machine 9.Liquid Level and Capping Detection Machine 10.Bottle Warmer 11.CO2 Carbonated Machine 12.OPP Hot Glue Labeling Machine 13.Date Printer 14.Label and Date Printing Detection Machine 15.Automatic Shrink Film Wrapping Machine 16.Palletizing Machine 17.On-Line Winding Machine

Company

filling machine factory1.jpg

With over 20 years of industry experience, we have established ourselves as a leading provider of beverage production line solutions worldwide. Our state-of-the-art manufacturing facility spans over 50,000 square meters and is equipped with advanced machinery and technology.


We pride ourselves on our commitment to quality, innovation, and customer satisfaction. Our team of experienced engineers and technicians work closely with clients to understand their specific needs and deliver customized solutions that exceed expectations.

FAQ

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality,our Engineer Team with over 20 year's experience,welcome to visit!
Q2.How can I know your machine has good quality?
A2:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q3:What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 15 months guarantee and supply life-long technical support.
Q4: When can I get my machine after I paid?
A4: The delivery time is based on the exact machine you confirmed.
Q5: How can I install my machine when it arrives?
A5: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q6: How about the spare parts?
A6: After we deal down all the things, we will offer you a spare parts list for your reference.
Q7: How to join EQS and become an agent?
A7: We sincerely invite you to become our filling machine agent and jointly expand the market. By contacting us, submitting company information for qualification evaluation, and ultimately signing an agency agreement, you will receive comprehensive product training and market support.
