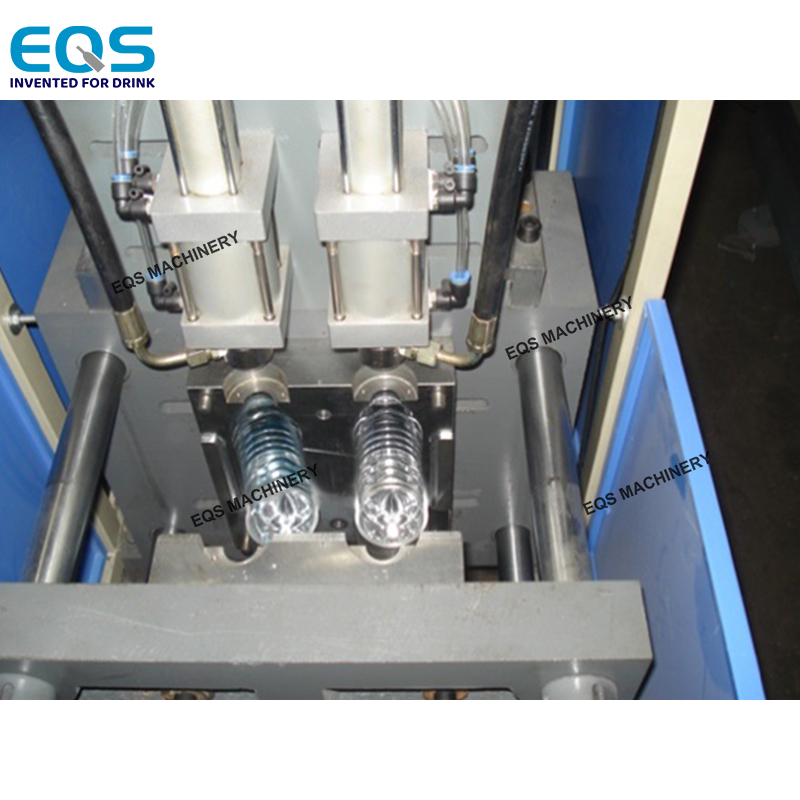

The plastic blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately.With infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.EQS semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.
| Name | Item | Unit | Details |
| Blowing machine | Dimension | mm | 1600×600×1610mm |
| Weight | kg | 500 | |
| Bottle volume (max) | ml | 2000 | |
| Bottle volume (min) | ml | 50 | |
| Bottle neck diameter (max) | mm | 40 | |
| Bottle neck diameter (min) | mm | 18 | |
| Body diameter (max) | mm | 125 | |
| Body height( max) | mm | 420 | |
| Number of cavities | mold | 2 | |
| Production output | pcs/h | 1600-1800BPH (500ml) | |
| Clamping force | T | 5.7(56KN) | |
| Mold thickness | mm | 200(max) | |
| Mold width | mm | 360×390 | |
| Space between Tie-bars | mm | 120-220 | |
| Diameter of tie-bars | mm | 63 | |
| Scope of tie-bars | mm | 405 | |
| Mold stroke | mm | 160 | |
| Stretching stroke (max) | mm | 420 | |
| Working pressure | Mpa | 0.8-1.0Mpa | |
| Blowing pressure | Mpa | 2.0-3.0Mpa | |
| Voltage/Power | V/KW | 220V/1KW | |
| Weight | Kg | 500 | |
| Pre-heater | Dimension | mm | 1870×630×1450mm |
| Weight | kg | 260 | |
| Voltage/Power | V/KW | 380V/14KW |
With over 20 years of industry experience, we have established ourselves as a leading provider of beverage production line solutions worldwide. Our state-of-the-art manufacturing facility spans over 50,000 square meters and is equipped with advanced machinery and technology.
We pride ourselves on our commitment to quality, innovation, and customer satisfaction. Our team of experienced engineers and technicians work closely with clients to understand their specific needs and deliver customized solutions that exceed expectations.
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality,our Engineer Team with over 20 year's experience,welcome to visit!
Q2.How can I know your machine has good quality?
A2:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q3:What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 15 months guarantee and supply life-long technical support.
Q4: When can I get my machine after I paid?
A4: The delivery time is based on the exact machine you confirmed.
Q5: How can I install my machine when it arrives?
A5: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q6: How about the spare parts?
A6: After we deal down all the things, we will offer you a spare parts list for your reference.
Q7: How to join EQS and become an agent?
A7: We sincerely invite you to become our filling machine agent and jointly expand the market. By contacting us, submitting company information for qualification evaluation, and ultimately signing an agency agreement, you will receive comprehensive product training and market support.
