Energy Saving Automatic Pet Bottle Making Machine 18000BPH Water Juice Oil 500ML Bottle Blow Moulding Machine Price

Machine Safety Protection System

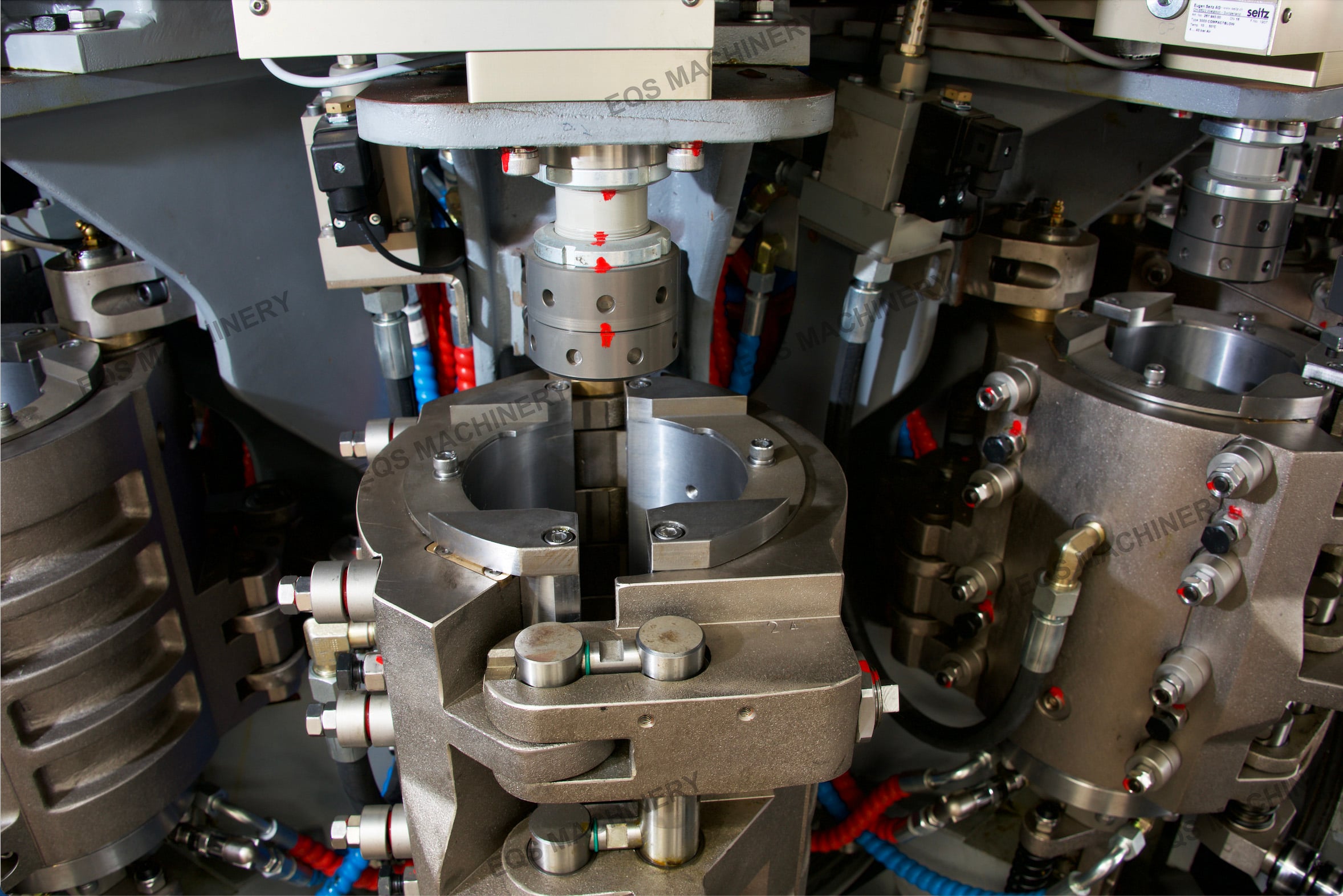

High Quality Components

High quality products from famous foreign manufacturers (OPTEX, FESTO, Seitz, Oki, etc.) are selected for key components such as equipment detection, cylinder, solenoid valve and bearing, which makes the performance of the whole machine more stable and reliable, reduces fault shutdown and maintenance costs, so as to ensure high production efficiency and yield and reduce production costs.

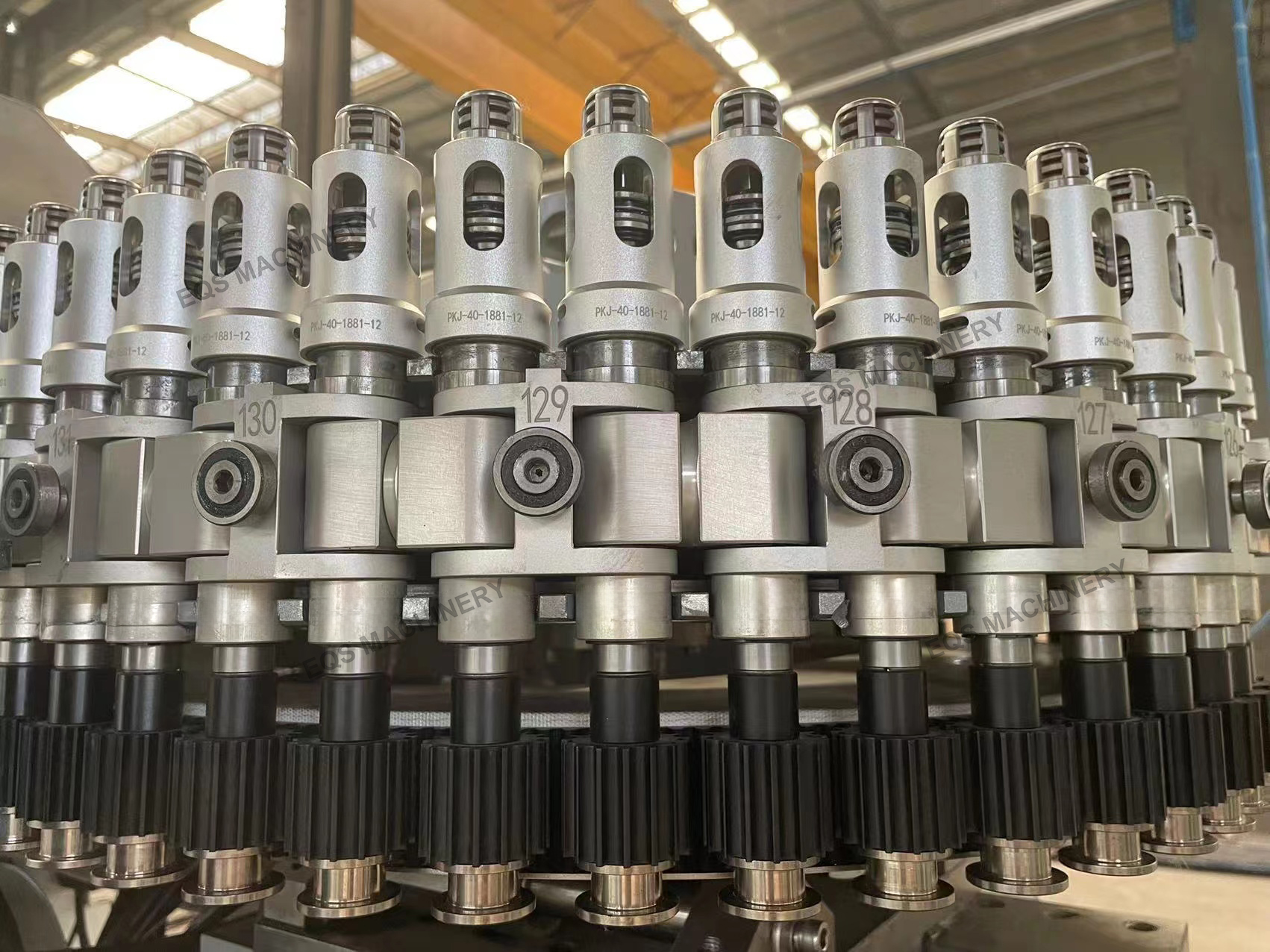

Heating Furnace

The heating furnace transmits the preforms entering the equipment through the whole row to each blank taking seat through the guide turntable. After the blank taking seat obtains the preforms, they are sent to the heating furnace for heating in turn. The heating furnace heats the bottle preform through the infrared lamp tube, and each section of the infrared lamp tube can adjust the temperature independently. The fan at the bottom of the heating furnace carries out thermal circulation to make the temperature in the furnace uniform.

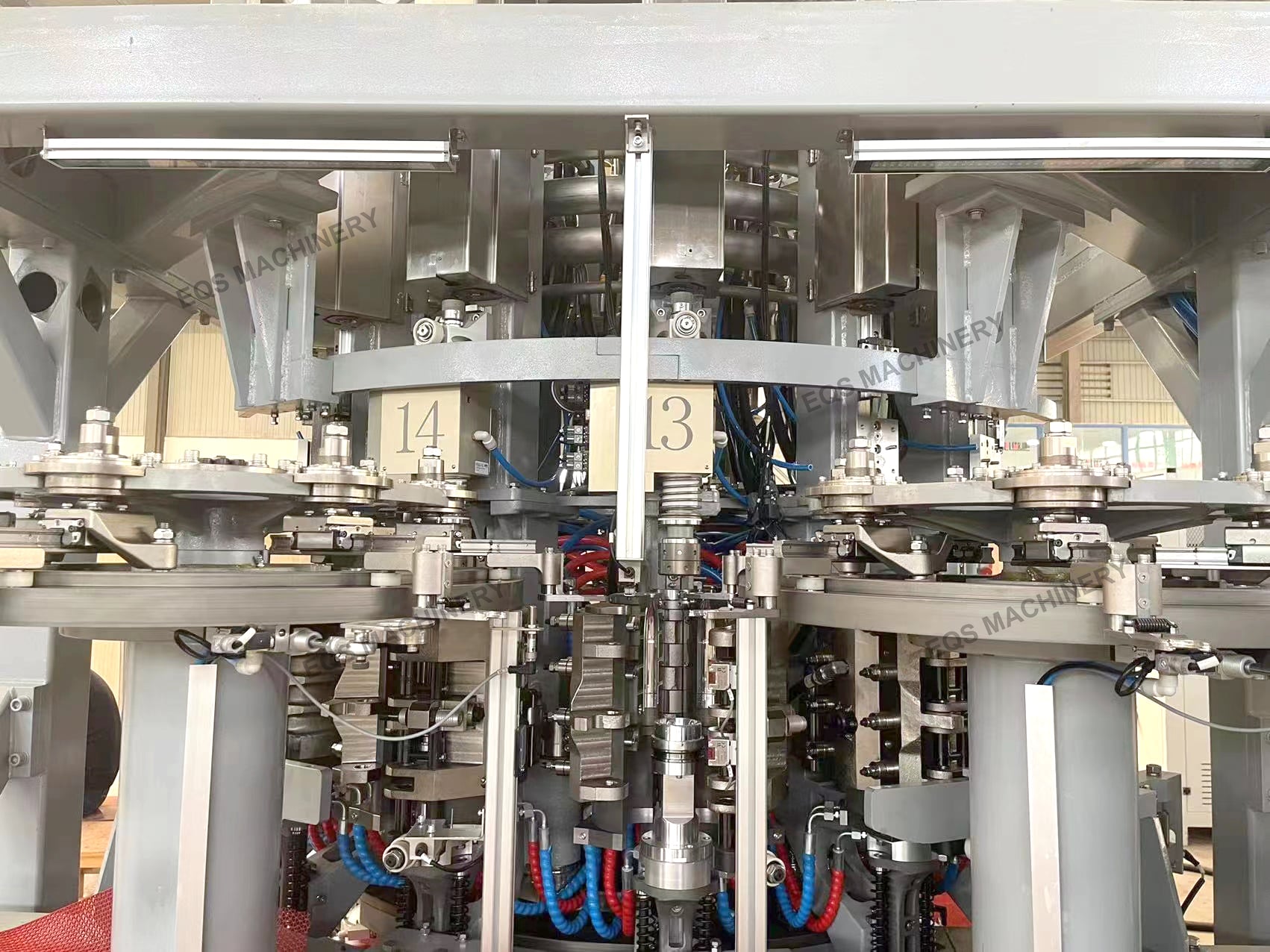

Host Part

The heated preform in the take-off seat is unloaded to the preform output track through the unloading sleeve, and the preform is sent to the blow mold through the manipulator device. The preform is sealed through the sealing seat, stretched by the stretching seat, and stretched into a bottle by two-stage air pressure (pre blowing air pressure and high blowing air pressure, hot filling and cold forming blowing). According to the process requirements, the cold filling bottles blowing mold will be passed the cooling water, and the hot filling bottle blowing mold will be heated by heat conduction oil. The whole process of bottle blowing production is monitored by the host computer.

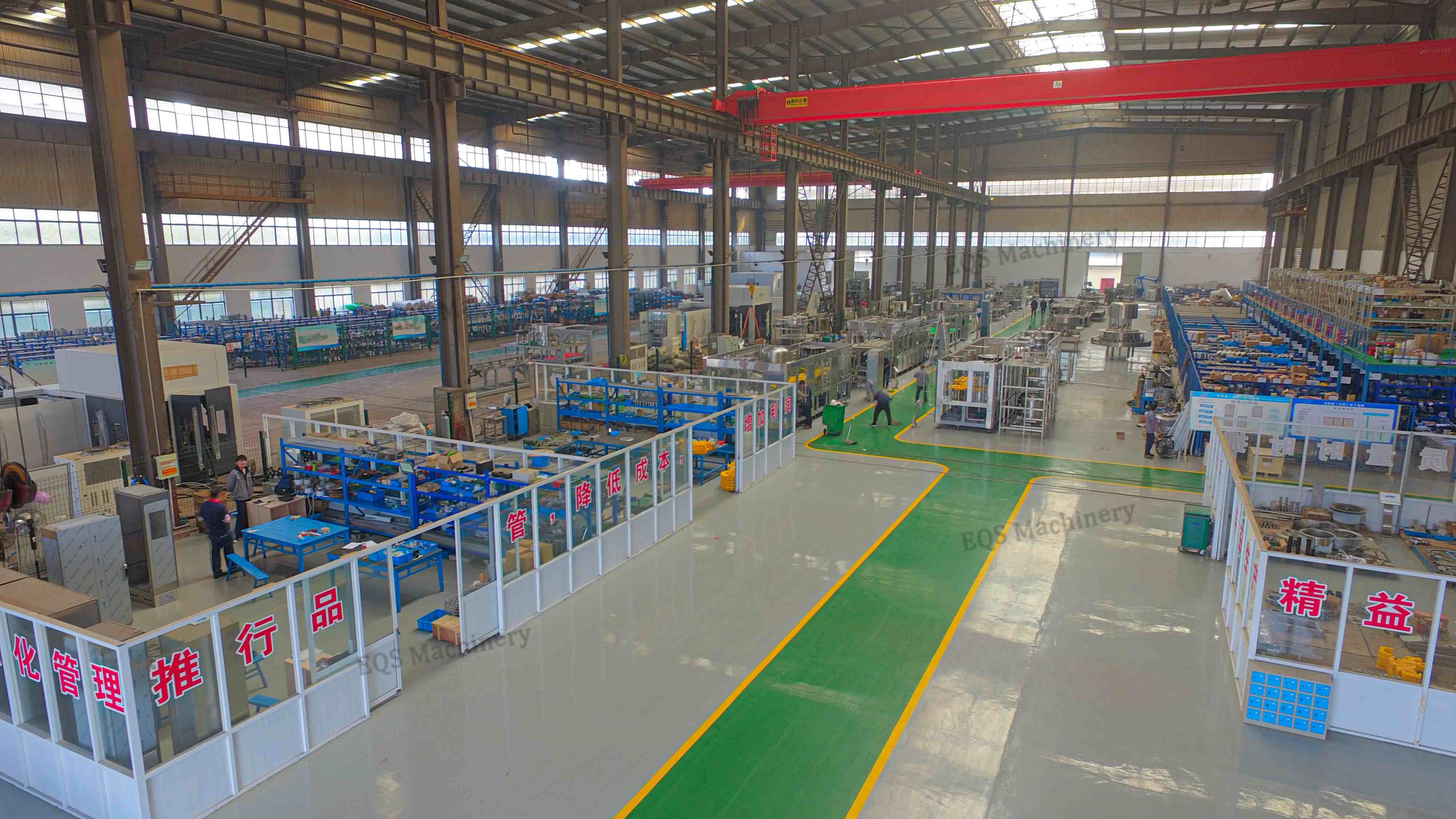

With over 20 years of industry experience, we have established ourselves as a leading provider of beverage production line solutions worldwide. Our state-of-the-art manufacturing facility spans over 50,000 square meters and is equipped with advanced machinery and technology.
We pride ourselves on our commitment to quality, innovation, and customer satisfaction. Our team of experienced engineers and technicians work closely with clients to understand their specific needs and deliver customized solutions that exceed expectations.

Q1: Are you a trading company or a manufacturer?
