Fully Automatic 2000CPH Beer Can Filling Machine
Fully Automatic 2000CPH Beer Can Filling Machine
Fully Automatic 2000CPH Beer Can Filling Machine
Fully Automatic 2000CPH Beer Can Filling Machine
Fully Automatic 2000CPH Beer Can Filling Machine

Fully Automatic 2000CPH Beer Can Filling Machine

Get a Quote
fully automatic 2000cph beer can filling machine-0
EQS helps you improve productivity and quality!

Beer Canning Line

**We supply complete solution for the beer can filling production line ,including Can Depallatizer/ Can Washer/ CIP System/Filling Sealing Monoblock Machine / Pasteurizer tunnel / Can Dryer/ Labeling Machine /Can Inverter / Packing Machine / Palletizer system and so on
Technical Parameters
Capacity(CPH/500ML)
1000-2000
6000-9000
200-300
Available Can Size
Can Height:80-180mm; Can Body Diameter:50-70mm;
Filling Pressure(Mpa)
0.3-0.5
0.3-0.5
0.2-0.4
Compressed Air Pressure(Mpa)
0.5-0.6
0.5-0.6
0.6-0.8
Compressed Air Consumption(M3/Min)
0.2
0.4
0.2
CO2 Consumption(KG/1000L)
25
32
36
CO2 Content(G/L)
5
5
5
CO2 Pressure(Mpa)
0.3-0.4
0.3-0.4
0.3-0.4
Main Motor Power(KW)
2.2
4
0.67
Dimension(MM)
2150*1200*2250
3200*2150*2320
2200*750*2360
Weight(KG)
2500
3270
1100
Complete Line Solution
fully automatic 2000cph beer can filling machine-1
Beer Can Filling Sealing Machine
The technology of this beer canning machine is imported from Germany and Switzerland. It is widely used for beer, carbonated beer, carbonated soft drinks, sparkling drinks with tinplate can or aluminum can. It has perfect performance.It is reliable in operation and easy to maintenance. The Capacity Range is 200CPH-72000CPH. Contact us today to request a free quote or more information.
Need a Filling Solution? Contact Us!
Turnkey Project
fully automatic 2000cph beer can filling machine-2
1.Can Depallatizer 2.Collection Table 3.Can Washer 4.Can Filling Sealing Machine 5.Can Dryer 6.Labeling Machine 7.Can Inverter 8.Date Printer 9.Can Inverter 10.Collection Table 11.Shrink Film Wrapping Machine 12.Retort 13.Retort
fully automatic 2000cph beer can filling machine-3
Cooperative Partner
fully automatic 2000cph beer can filling machine-4
About us
fully automatic 2000cph beer can filling machine-5

1.Factory

Our company is a public company in China with over 15 subsidiaries.And we are famous in the field of dairy, dairy, beverage,condiment, wine, daily chemicals. And we focus on providing the global customer with complete sets of intelligent equipment and turnkey solutions such as water treatment, pre-allocation, bottle blowing, filling, secondary packaging, robotic palletizing, intelligent equipment workshops, etc.
fully automatic 2000cph beer can filling machine-6
fully automatic 2000cph beer can filling machine-7
Cooperation Partner
Our equipment has been exported to abroad and domestic market. Such as Mengniu, MasterKong, Nongfu Spring, PANPAN, CoCa Cola, Yili, Comfort, Pepsi, Robust, Sanyuan, Tsingtao Beer, SnowBeer, RedBull, Jianlibao,C’setbon, Nestle Waters, Lotte, Malee, Safeguard, Kinsell, Perrier, Evian, Wahaha, New Hope, Hengshun,... who are all our cooperated partners.

Production & Processing

We have a strong technology technology resources development and production team, which has two lead engineers with twenty years of experience, fifteen senior electrical engineers, ten overseas installation engineers over 30 years, about hundreds assembly workers with 5-20 practical production experience.
3.Certification
fully automatic 2000cph beer can filling machine-8
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality,our Engineer Team with over 20 year's experience,welcome to visit!
Q2.How can I know your machine has good quality?
A2:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q3:What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 15 months guarantee and supply life-long technical support.
Q4: When can I get my machine after I paid?
A4: The delivery time is based on the exact machine you confirmed.
Q5: How can I install my machine when it arrives?
A5: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q6: How about the spare parts?
A6: After we deal down all the things, we will offer you a spare parts list for your reference.
Q7: How to join EQS and become an agent?
A7: We sincerely invite you to become our filling machine agent and jointly expand the market. By contacting us, submitting company information for qualification evaluation, and ultimately signing an agency agreement, you will receive comprehensive product training and market support.
contact us

Technical Parameters

Capacity(CPH/500ML) 200-300 1000-2000 6000-9000
Available Can Size Can Height:80-180mm; Can Body Diameter:50-70mm;
Filling Pressure(Mpa) 0.2-0.4 0.3-0.5 0.3-0.5
Compressed Air Pressure(Mpa) 0.6-0.8 0.5-0.6 0.5-0.6
Compressed Air Consumption(M3/Min) 0.2 0.2 0.4
CO2 Consumption(KG/1000L) 36 25 32
CO2 Content(G/L) 5 5 5
CO2 Pressure(Mpa) 0.3-0.4 0.3-0.4 0.3-0.4
Main Motor Power(KW) 0.67 2.2 4
Dimension(MM) 2200*750*2360 2150*1200*2250 3200*2150*2320
Weight(KG) 1100 2500 3270

Complete Line Solution

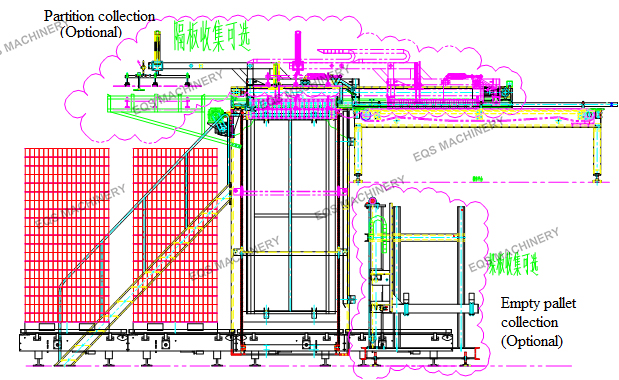

Can Depallatizer
The automatic depalletizing machine is mainly applicable to the automatic destacking of the whole stack of empty cans. It lifts the empty cans stacked on the pallet layer by layer from bottom to top and pushes them to the conveying chain. Instead of manual cans arrangement and traditional empty can unloader, it can save a lot of labor and improve the production capacity.
can washer2.jpg
Can Washer
This machine is the necessary equipment for the filling line of beer and beverage and the washing of empty cans. The empty tank is fed into the front end of the flip mechanism by the conveying belt, and the open end of the empty tank is flipped from the original upward to the downward, and then into the tank punching machine.

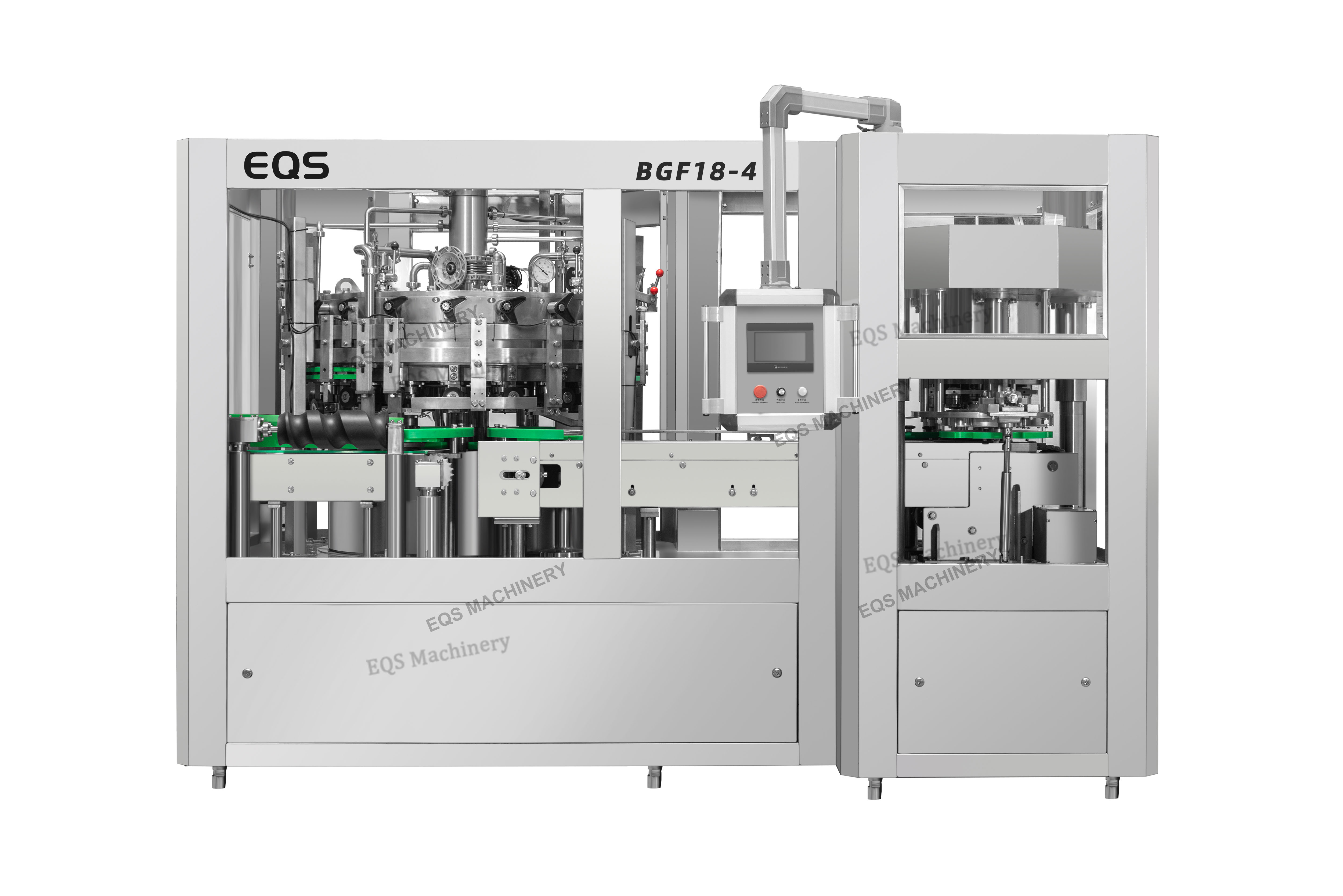

Carbonated Can Filling Sealing Machine
The technology of this beer canning machine is imported from Germany and Switzerland. It is widely used for beer, carbonated beer, carbonated soft drinks, sparkling drinks with tinplate can or aluminum can. It has perfect performance.It is reliable in operation and easy to maintenance. The Capacity Range is 200CPH-72000CPH.
Beer Pasteurizer tunnel
Thermal sterilization cooling tunnel is an especially designed pasteurization device for dairy, fruit juice, beverages, beer, food and medicinal products,It is especially necessary as an automated production line’s secondary sterilization equipment. It can per the client’s requirements for different products, heat, sterilize, preserve the temperature or cool products, per different process requirements. It can also undertake different process designs, satisfy process requirements and, per client requirements,configure the corresponding high precision automated control system.

Turnkey Project

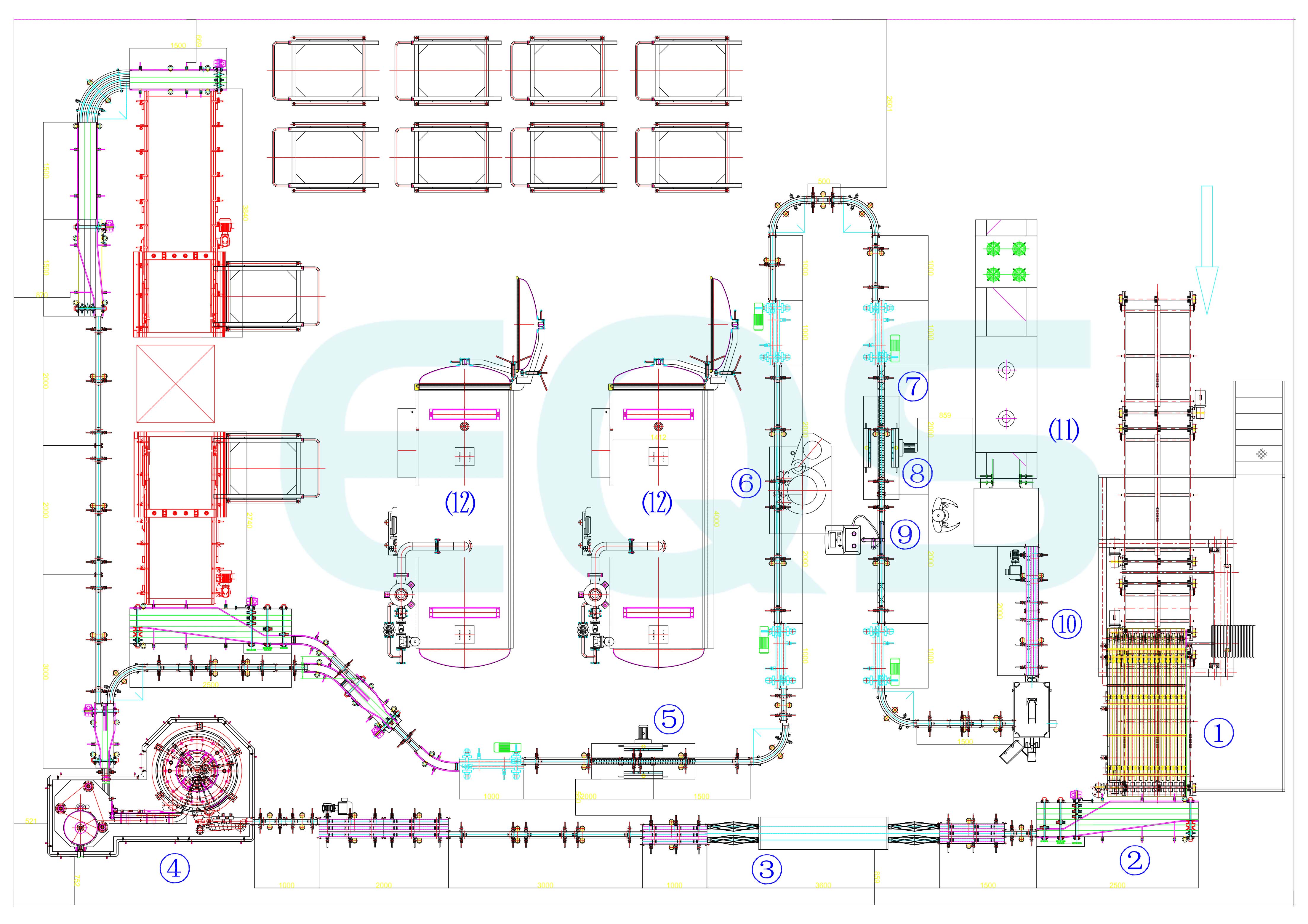

30000CPH Can Filling Production Line

1.Can Depallatizer 2.Collection Table 3.Can Washer 4.Can Filling Sealing Machine 5.Can Dryer 6.Labeling Machine 7.Can Inverter 8.Date Printer 9.Can Inverter 10.Collection Table 11.Shrink Film Wrapping Machine 12.Retort 13.Retort

Company

filling machine factory1.jpg

With over 20 years of industry experience, we have established ourselves as a leading provider of beverage production line solutions worldwide. Our state-of-the-art manufacturing facility spans over 50,000 square meters and is equipped with advanced machinery and technology.


We pride ourselves on our commitment to quality, innovation, and customer satisfaction. Our team of experienced engineers and technicians work closely with clients to understand their specific needs and deliver customized solutions that exceed expectations.

FAQ

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality,our Engineer Team with over 20 year's experience,welcome to visit!
Q2.How can I know your machine has good quality?
A2:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q3:What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 15 months guarantee and supply life-long technical support.
Q4: When can I get my machine after I paid?
A4: The delivery time is based on the exact machine you confirmed.
Q5: How can I install my machine when it arrives?
A5: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q6: How about the spare parts?
A6: After we deal down all the things, we will offer you a spare parts list for your reference.
Q7: How to join EQS and become an agent?
A7: We sincerely invite you to become our filling machine agent and jointly expand the market. By contacting us, submitting company information for qualification evaluation, and ultimately signing an agency agreement, you will receive comprehensive product training and market support.
