Full Automatic 12000BPH Juice Pet Bottle Washing Filling Capping Machine
Full Automatic 12000BPH Juice Pet Bottle Washing Filling Capping Machine
Full Automatic 12000BPH Juice Pet Bottle Washing Filling Capping Machine
Full Automatic 12000BPH Juice Pet Bottle Washing Filling Capping Machine
Full Automatic 12000BPH Juice Pet Bottle Washing Filling Capping Machine
Full Automatic 12000BPH Juice Pet Bottle Washing Filling Capping Machine

Full Automatic 12000BPH Juice Pet Bottle Washing Filling Capping Machine

Capacity:2000-24000BPH
Bottle Size:250ML-2000ML
Function:Washing Filling Capping

Get a Quote


Fruit Juice Bottling Machine

Water Treatment-- Blending--Homogenizer--Plate Type Sterilizer/ Tube Type Sterilizer-- Juice Filling Machine(Rinsing-Filling-Capping)--Bottle Inverter Sterilizer--Spray and Cooling Machine-Lamp Check- Bottle Dryer- Labeling Machine-Date Printer--Shrink Film Wrapping Machine--Palletizing--Warehouse

Technical Parameters

Model CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10 CGF40-40-12 CGF50-50-15
Rinsing Heads 16 18 24 32 40 50
Filling Heads 12 18 24 32 40 50
Capping Heads 6 6 8 10 12 15
Capacity(BPH) 4000 6000 10000 12000 18000 20000
Motor Power(KW) 2.2 3.5 4.5 6 7.5 9.5
Dimension(mm) 2300*1600*2500 2600*1920*2550 3100*2200*2800 3850*3000*2850 4850*3800*2750 5750*3550*2750
Weight(KG) 2600 3500 4650 6800 8500 10000

Complete Line Solution

One Stage RO System(1).png

Water Treatment System
According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants.help to reduce the material consumption and maitenance cost .

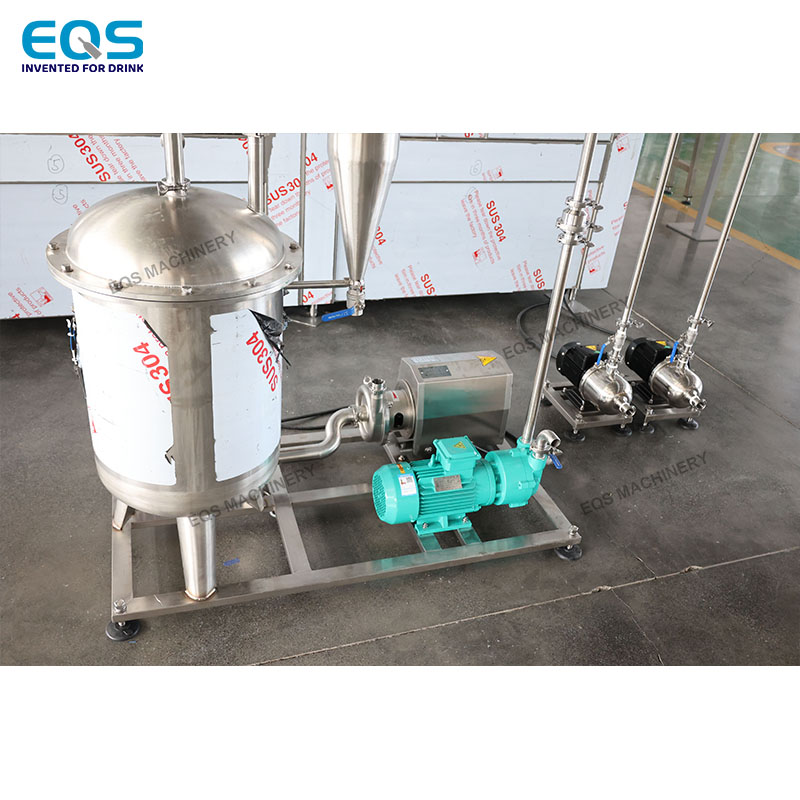

Pretreatment System
The pretreatment system is specially designed to produce juice, tea drinks, lactic drinks, aerated drinks, etc, which includes types of equipment, such as hot-water system, sugar melting system, recovery system, extraction system, milk power reconstitution system, monosaccharide system, saccharide system, mixing and allocating system, CIP system, plate or tube UHT sterilizers, mixers,vacuum degassing and aroma recycling system, homogenizing system, and control system.
hot filling machine(230323ed91).jpg
Juice Hot Washing Filling Capping Machine
Complete juice processing system is not only can be suitable for common products, but also can satisfy special requirements of customers, for example concentrated juice, fresh juice, tea, coffee or flavor milk, cream or high viscosity products containing fiber and large pulp granules. It included high-shear emulsifying tank, plate heat exchanger, double filter, mixing tank, UHT sterilizer, homogenizer machine, buffer tank, hot water system, hot water tank and CIP cleaning system.
Bottle Inverter Sterilizer.jpg
Bottle Inverter Sterilizer
The bottle inverter sterilization chain can perform secondary sterilization on beverage bottles after filling and sealing, ensuring product quality. Here, the bottle is guided by two mutually perpendicular chain plates and automatically flipped to a tilted state. This kind of flipping usually reaches 96 degrees or 110 degrees, allowing the high-temperature beverage inside the bottle (usually not lower than 80 ℃) to fully contact and sterilize the gap between the inner wall of the bottle cap and the bottle mouth that is not directly in contact with high-temperature materials.
labeling machine.jpg
Labeling Machine
The Labeling Machine from EQS Machinery is a state-of-the-art solution for fast, efficient, and accurate labeling of a wide variety of containers and packages. Designed to meet the demanding needs of modern production environments, this machine combines cutting-edge technology with robust engineering to deliver unparalleled performance and reliability.
packaging machine.jpg
Packaging Machine
We supply the different bottle package design , Film package ,Carton box wrapper ,Film with tray package and so on

Turnkey Project


20000BPH Mango Juice Hot Filling Production Line

1.Water Treatment System 2.Air Compressor Room 3.Pre-treatment System 4.CIP System 5.Bottle Preform Hooper 6.Cap Uploader and sorter 7.Bottle Preform Unscrambler 8.Sterilized Air Preparation 9.Cap Steriling 10.Blowing-Filling-Capping Combiblock 11.Water Chiller 12.Auxiliary System of Filing machine 13.Bottle Inveter 14.Spraying Sterilizing Cooling System 15.Bottle Dryer 16.Hot Glue Labeling Machine 17.Laser Printer 18.Automatic Carton Machine 19.Inket Printer 20.Palletizer

Company

filling machine factory1.jpg

With over 20 years of industry experience, we have established ourselves as a leading provider of beverage production line solutions worldwide. Our state-of-the-art manufacturing facility spans over 50,000 square meters and is equipped with advanced machinery and technology.


We pride ourselves on our commitment to quality, innovation, and customer satisfaction. Our team of experienced engineers and technicians work closely with clients to understand their specific needs and deliver customized solutions that exceed expectations.

FAQ

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality,our Engineer Team with over 20 year's experience,welcome to visit!
Q2.How can I know your machine has good quality?
A2:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q3:What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 15 months guarantee and supply life-long technical support.
Q4: When can I get my machine after I paid?
A4: The delivery time is based on the exact machine you confirmed.
Q5: How can I install my machine when it arrives?
A5: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q6: How about the spare parts?
A6: After we deal down all the things, we will offer you a spare parts list for your reference.
Q7: How to join EQS and become an agent?
A7: We sincerely invite you to become our filling machine agent and jointly expand the market. By contacting us, submitting company information for qualification evaluation, and ultimately signing an agency agreement, you will receive comprehensive product training and market support.
