Capacity:2000-24000BPH
Bottle Size:250ML-2000ML
Function:Washing Filling Capping
With precision engineering and advanced technology, this machine ensures smooth and accurate filling operations. Whether you are a small beverage company or a large-scale manufacturer, this versatile machine is designed to meet your production needs.
Upgrade your production line with our high-quality water filling machine today.
**We supply complete solution for the water filling production line ,including bottle blowing machine/ CIP system/Water treatment system /Washing filling capping machine(blowing-filling-capping) /Automatic labeling machine / Date Printer/ Automatic packing machine /Automatic Palletizer system and so on
| Model | CGF14-12-4 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
| Rinsing Heads | 14 | 18 | 24 | 32 | 40 | 50 |
| Filling Heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping Heads | 4 | 6 | 8 | 10 | 12 | 15 |
| Capacity(BPH) | 4000 | 6000 | 10000 | 12000 | 18000 | 24000 |
| Motor Power(KW) | 2.2 | 3.5 | 4.5 | 6 | 7.5 | 9.5 |
| Dimension(mm) | 2100*1500*2200 | 2300*1700*2400 | 2800*2200*2400 | 2900*2200*2500 | 3600*2700*28520 | 5450*3300*2900 |
| Weight(KG) | 2000 | 2500 | 3500 | 5500 | 7500 | 9600 |
Water Treatment System
According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants.help to reduce the material consumption and maitenance cost .
Bottle Blowing Machine
Automatic bottle blowing machine can be widely used to blow various calibers of hollow plastic containers, product quality is stable, the machine structure design is reasonable, with small volume less energy consumption, easy to operate, easy to maintain and so on.

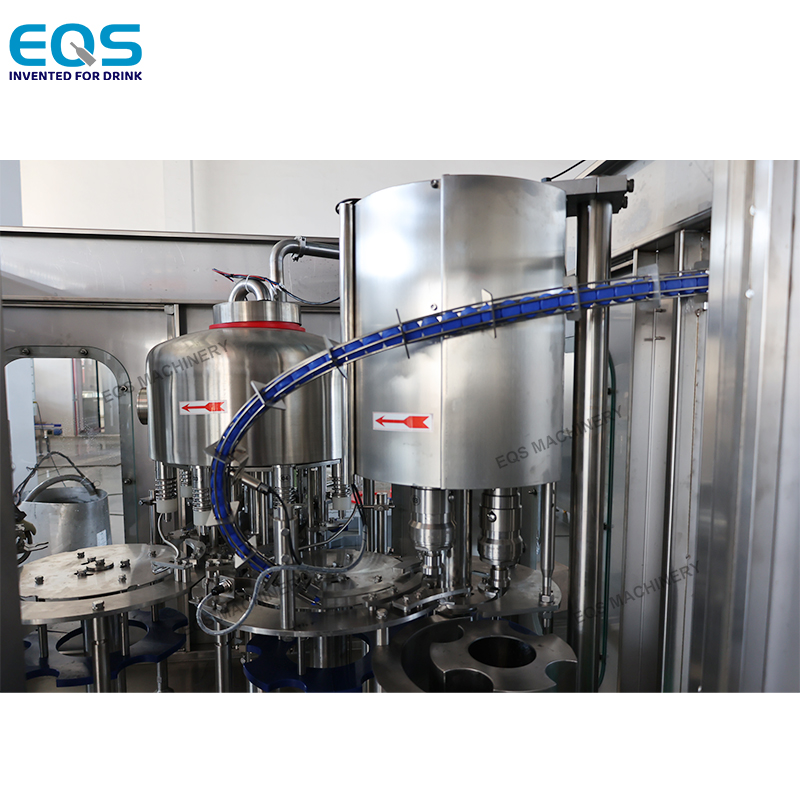

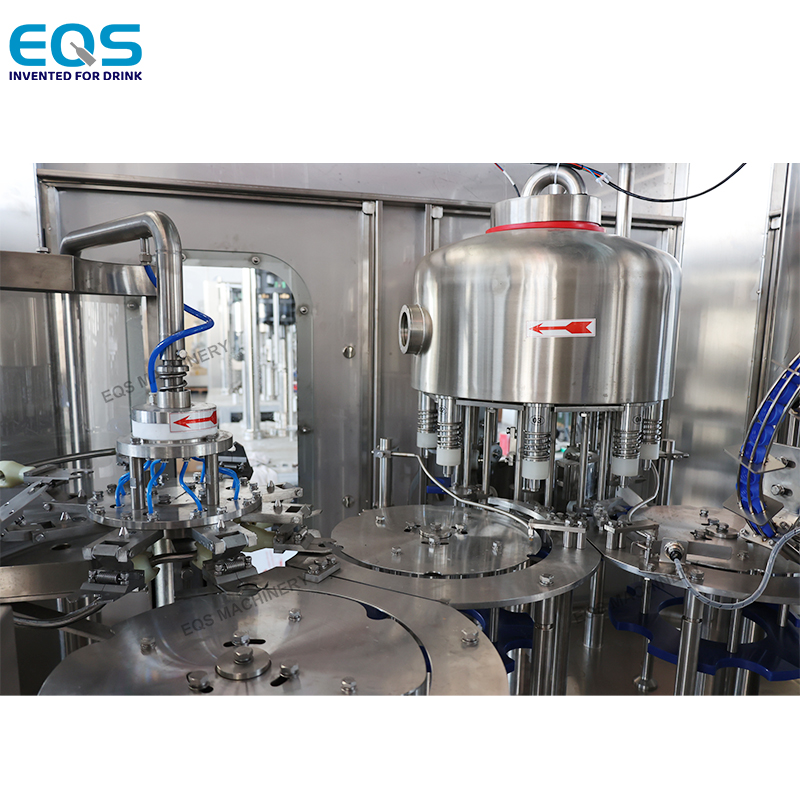

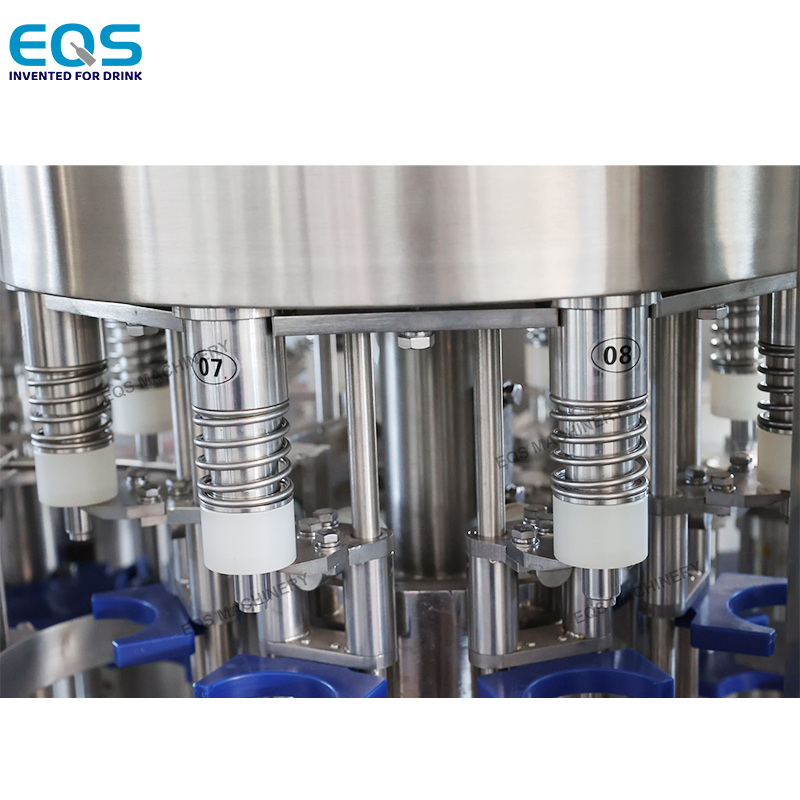

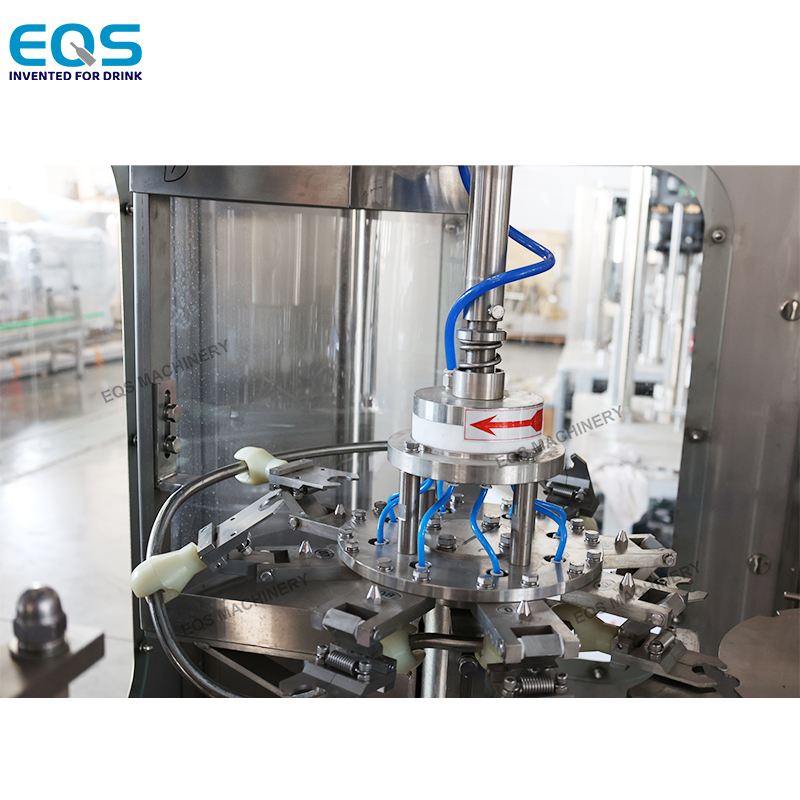

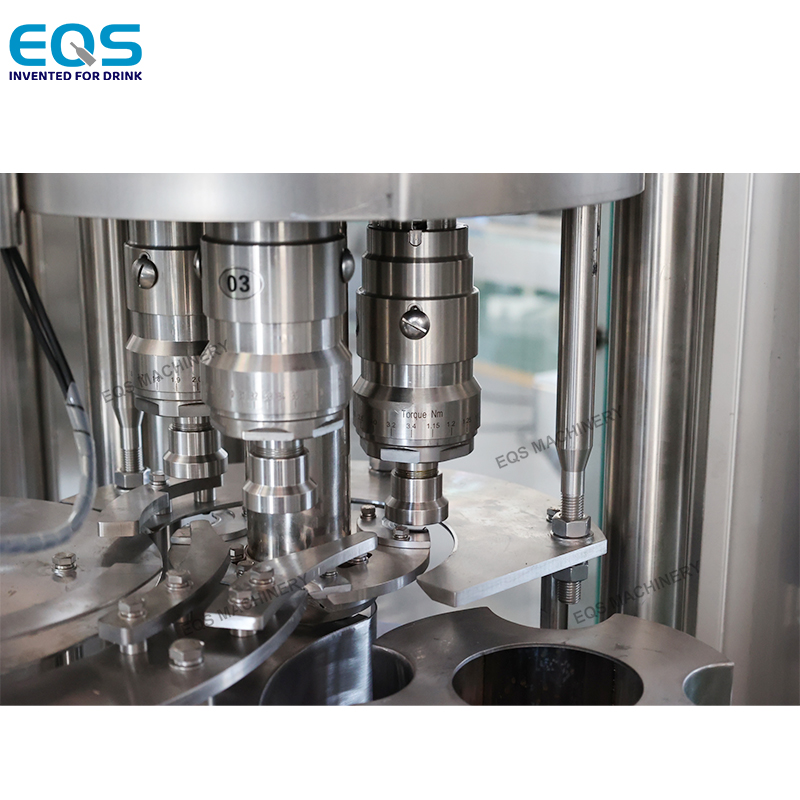

Water Washing Filling Capping Machine
This Water Filling Machine is used to produce polyester bottled mineral water, purified water, drinking water beverage machinery and other non-gas beverage machinery. This Water Filling Machine can finish all the process such as rinsing bottle, filling and sealing, it can reduce the materials and Outsiders touch time,improve the sanitary conditions,production capacity and economic efficiency.
Labeling Machine
The Labeling Machine from EQS Machinery is a state-of-the-art solution for fast, efficient, and accurate labeling of a wide variety of containers and packages. Designed to meet the demanding needs of modern production environments, this machine combines cutting-edge technology with robust engineering to deliver unparalleled performance and reliability.
Packaging Machine
We supply the different bottle package deisgn , Film package ,Carton box wrapper ,Film with tray package and so on ..
24000BPH Water Filling Production Line
1.Water Treatment System 2.Air Compressor Room 3.Water Blowing Filling Capping Machine 4.Laser Printer 5.Lamp Checker 6.Centralized Lubrication System 7.Bottle Dryer 8.Hot Glue Labeling Machine 9.Lamp Checker 10.Automatic Carton Machine 11.Inkjet Printer 12.Palletizer
With over 20 years of industry experience, we have established ourselves as a leading provider of beverage production line solutions worldwide. Our state-of-the-art manufacturing facility spans over 50,000 square meters and is equipped with advanced machinery and technology.
We pride ourselves on our commitment to quality, innovation, and customer satisfaction. Our team of experienced engineers and technicians work closely with clients to understand their specific needs and deliver customized solutions that exceed expectations.
Q1：What is the actual output of your full automatic 2000BPH PET water bottling machine?
A1：Our 2000BPH integrated rinsing filling capping unit runs stable rated capacity at 1800–2200 bottles per hour for 500ml standard PET drinking water bottles. Output fluctuates slightly based on different bottle volume and operator proficiency; it is ideal for small startup mineral water factories.
Q2：Which PET bottle sizes can the 2000BPH 3-in-1 water filling machine support?
A2：This full auto water bottling line fits PET bottles ranging from 200ml to 2000ml, covering small portable drinking water and big gallon PET bottles. Mold replacement takes only 20–30 minutes to switch different bottle specifications without extra tooling.
Q3：What material is used for liquid contact parts on your 2000BPH automatic water washing filling capping machine?
A3：All water contact components adopt SUS304 food-grade stainless steel, complying with international drinking water hygiene standards. The machine is equipped with CIP cleaning interface for regular inner pipeline sanitation to avoid water contamination.
Q4：Does the 2000BPH full automatic PET water bottling machine come with relevant international certification?
A4：Our 2000BPH water 3-in-1 bottling equipment has obtained CE certification, meets common import inspection standards for most countries. Complete certification documents can be provided for customs clearance when customers import machines.
Q5：What warranty and after-sales service do you offer for 2000BPH automatic PET water filling machine?
A5：We provide 12-month warranty for core mechanical and electric parts of the 2000BPH water bottling machine. Free remote online troubleshooting is available lifelong, and overseas on-site installation & commissioning service can be arranged as required.
