Views: 0 Author: Site Editor Publish Time: 2025-07-02 Origin: Site
Looking to invest in a Glass Bottle Washing Machine for your production line? You’ve come to the right place! This ultimate guide will walk you through everything you need to know to make the best choice. From understanding the different types and features to troubleshooting common issues, we’ve got you covered. Let’s dive in and find the perfect machine to keep your bottles clean and your production running smoothly.
A glass bottle washing machine is automated equipment. It cleans, disinfects, and dries glass bottles so they are ready for reuse or direct filling. Factories and labs use these machines to handle bottles safely while maintaining hygiene. They often use high-pressure water jets, detergents, and hot air to remove residues inside and outside bottles.
Glass bottle washers may work in rotary, linear, or tunnel designs. They can clean different bottle types, including vials, jars, and ampoules. Using programmable settings, they manage soaking, washing, rinsing, and drying automatically.
Bottles from suppliers may contain dust, glass particles, or oils from manufacturing. Washing removes these contaminants so they do not spoil the product inside. Without proper washing, debris could enter food, beverages, or medicines.
Industries like pharmaceuticals and cosmetics need bottles free from bacteria and particles. Washing machines help prepare these bottles for sterile filling areas. They use hot water, detergents, or disinfectants to meet GMP and FDA hygiene requirements.
Purpose | Details |
Cleaning | Removes dust, particles, residues |
Disinfecting | Uses hot water or disinfectants |
Drying | Prepares bottles for next processes |
Hygiene Compliance | Meets industry safety standards |
Bottle Compatibility | Jars, vials, ampoules, bottles |
It cleans and disinfects bottles automatically. Removes contaminants before filling. Prepares bottles for hygienic production environments.
Choosing the right glass bottle washing machine depends on your production needs. These machines differ by automation level, structure, and cleaning method. Understanding each type helps match the washer with your line.

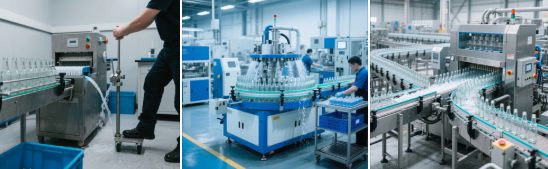

Manual bottle washers need operators for loading, washing, and unloading. They suit small batches, labs, or pilot production. Operators control water flow using foot pedals or hand levers.
Semi-automatic machines automate some steps. They may rotate bottles and spray water while requiring manual loading and unloading. They increase speed while keeping costs lower than full automation.
Fully automatic washers handle the entire process. They load, wash, rinse, and discharge bottles using conveyors and PLC control. These machines fit large production lines needing high speeds and consistent sanitation.

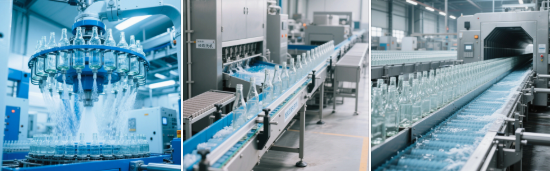

These use rotating arms or baskets to move bottles under spray nozzles. They clean multiple bottles simultaneously while spinning for even washing. Rotary washers handle round bottles efficiently and save floor space.
Linear washers transport bottles in a straight path through pre-wash, wash, and rinse stages. They suit lines needing flexibility for different bottle shapes and easy integration with conveyors.
Tunnel washers work with continuous feed. Bottles enter one end and exit clean from the other. They manage high-capacity needs for beverage or pharmaceutical industries, ensuring thorough washing at scale.
These use high-frequency sound waves in water baths to dislodge particles from bottle surfaces. Ultrasonic cleaning works well for removing fine debris and residues without harsh scrubbing.
Air jets blow filtered air inside bottles, clearing out dust and particles. They suit dry cleaning needs where water should be avoided or pre-cleaning before wet washing.
These machines spray water at high pressure into bottles, removing residues and contaminants. They often pair with detergents or hot water for stronger cleaning, ideal for food and pharmaceutical bottle preparation.
Category | Type | Best For |
Automation Level | Manual, Semi-automatic, Fully Automatic | Small to large batches |
Structure | Rotary, Linear, Tunnel | Space, flexibility, high volume |
Cleaning Method | Ultrasonic, Air-jet, Water jet | Residue removal, dry cleaning |
Manual, semi-auto, or fully auto for different scales. Rotary, linear, tunnel for layout and bottle type. Ultrasonic, air-jet, or water jets for cleaning needs.
Choosing the right glass bottle washing machine shapes your production’s hygiene and efficiency. It impacts bottle quality, energy use, and output speed. We break down what to check before you buy.
The machine’s capacity defines how many bottles it can wash per hour. Some small models handle hundreds. Large systems can clean thousands. Your washer should match your filler’s speed. A mismatch causes bottlenecks. If your filler runs fast, your washer must keep up. It ensures your line stays smooth.
Machines differ in what bottles they handle. Some only work with standard round bottles. Others adjust for jars, ampoules, or unique shapes. If you run many SKUs, check changeover speed. Machines with easy-to-adjust parts let you switch bottles fast. It reduces downtime during product changeovers.
High-quality machines spray water at different angles. This cleans inside and outside surfaces thoroughly. Some washers use hot water or steam to kill bacteria. It helps industries needing sterile packaging. Drying matters. Machines with strong air-blow systems dry bottles quickly. Fast drying keeps your filling line running without delays.
Top machines use stainless steel. It resists rust and keeps surfaces hygienic. Smooth, polished surfaces help cleaning and maintenance. Dirt and residues do not stick, reducing manual scrubbing.
Some machines use less power, reducing factory energy costs. Look for energy-efficient motors. Advanced models recycle rinse water, cutting water bills. It also helps meet sustainability goals.
Industries like food and pharma require compliance. Machines should meet CE, GMP, or FDA standards. Check for safety sensors, covers, and low noise ratings. It protects workers and keeps your plant comfortable.

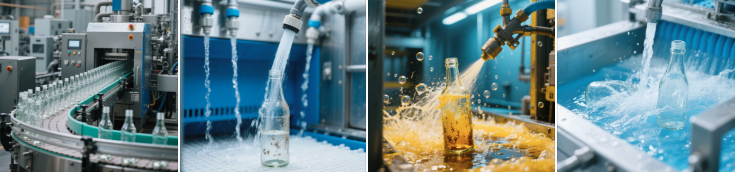

Glass bottle washing machines clean bottles in a systematic, automated cycle. They prepare bottles for safe filling while reducing manual handling.
Infeed: Bottles enter the machine using a conveyor or feeding system. They line up for consistent washing; Pre-wash: Bottles get a quick rinse. It removes dust and loose debris before main washing; Main wash with detergents/chemicals: Machines spray bottles using jets. They use caustic solutions or detergents to break down oils, residues, or adhesives inside and outside the bottles;
Rinsing (DI or purified water): After detergent, bottles are rinsed with deionized (DI) or purified water. It clears out chemicals, ensuring no residues remain; Hot water rinse: Hot water helps sanitize the bottles further. It loosens remaining particles, reduces bacteria, and speeds up drying; Air blowing/drying: Air jets blow out moisture from bottles. Hot air may be used to reduce drying time, preparing bottles for immediate filling; Discharge: Clean, dry bottles exit to the next stage. They move to filling, capping, or inspection lines automatically.
Pre-soaking is used for stubborn residues like sticky labels or oil films. Bottles sit in a warm water bath. This softens adhesives and contaminants before spraying. It makes the washing cycle more effective, especially for recycled bottles.
Deionized Water
It reduces mineral spots, ensuring bottles stay clear and spotless. DI water is important for pharmaceuticals and high-purity needs.
Caustic Solutions
These break down oils and sticky residues quickly. They remove industrial dirt, making cleaning faster.
Hot Air
Hot air drying ensures bottles leave the washer without moisture. It prevents bacteria growth and helps maintain bottle clarity.
Stage | Purpose |
Infeed | Aligns bottles |
Pre-wash | Removes loose dirt |
Main wash | Uses detergent/caustic for deep clean |
Rinsing | Clears chemicals using DI water |
Hot water rinse | Sanitizes, loosens residues |
Air blowing | Dries bottles with hot air |
Discharge | Sends bottles to next process |
Bottle washing can face problems if systems are not adjusted well. Here is how to spot and fix common issues so bottles leave your line clean, dry, and undamaged.
Glass bottles may crack or break during washing cycles. This often happens from incorrect pressure, misaligned guides, or sudden impacts. Check conveyor speeds so bottles move steadily. Use soft entry guides to reduce collision risk. Adjust water pressure if jets are too strong for lightweight or thin-walled bottles.
Nozzles can clog from mineral deposits, label glue, or debris. This leads to poor spray patterns and dirty bottles. Clean and inspect nozzles regularly. Use filtered water to reduce particles entering the system. If glue buildup is common, consider adding a pre-soak to loosen labels before spraying.
Washing bottles can consume a lot of water if unchecked. Machines may run continuously without optimized cycles. Consider installing water recycling systems that filter and reuse rinse water. This reduces your bills while maintaining cleaning quality. Adjust cycles so water only runs when bottles are present.
Bottles may leave washers wet if air jets are weak or improperly placed. Moisture can cause bacteria growth or slow the next steps. Use hot air blowers to speed up drying. Position air jets to cover bottle interiors and exteriors. Check that bottles do not block airflow paths during drying.
Regular checks keep your bottle washer efficient. Lubricate moving parts to prevent wear. Inspect seals and hoses for leaks. Clear out scale buildup in heating elements or pipes. Keep a simple schedule:
Daily: Clean nozzles and wipe surfaces.
Weekly: Check and tighten loose parts.
Monthly: Inspect pumps and heating systems.
Quarterly: Deep clean tanks, filters, and air systems.
Choosing a glass bottle washing machine means checking how it fits into your existing production line. This ensures your washing, filling, capping, and labeling work as a seamless system.
First, match the washing machine’s output speed to your filler’s input speed. If your washer cleans 6,000 bottles per hour, your filler should handle a similar rate. Check bottle type compatibility across machines so sizes and shapes align. Use buffer tables between machines to avoid stoppages if one unit slows down. This keeps production moving without manual bottle handling.
Measure your plant’s available space. Place the washer close to the filling machine to reduce bottle travel distance. Keep a straight-line flow when possible so bottles do not need to turn between machines. If space is tight, consider rotary washers, which need less floor space than linear or tunnel washers. Leave space for maintenance access on machine sides.
Automated washers with PLC control can sync speeds with filling and capping machines. When the filler slows down, the washer can automatically adjust its speed. Use sensors to detect bottle jams or shortages, sending signals to stop upstream machines, reducing breakage risks. Some systems allow touch-screen control panels so operators can monitor and adjust all machines from one point.
A: Match the washer’s bottles-per-hour to your filler speed. Small lines may need 500–1,500 BPH, while large factories often require 3,000–6,000 BPH or more.
A: Yes, many washers handle various bottle shapes and sizes. Look for adjustable guides and quick changeover designs for flexibility across SKUs.
A: Clean nozzles and surfaces daily. Perform deeper maintenance, including pump checks and scale removal, monthly to keep the system efficient.
A: Rates vary by model. Advanced washers recycle rinse water, reducing usage, and use energy-efficient motors to lower operational costs.
A: Yes, ultrasonic washers remove fine particles gently, ensuring high hygiene. They suit pharmaceutical needs requiring thorough, residue-free cleaning.
Glass bottle washing machines are essential for keeping bottles clean and ready for filling. They use various methods to remove contaminants and ensure hygiene. Whether you need a manual, semi-automatic, or fully automatic washer, the right choice depends on your production scale.
Ready to find the perfect glass bottle washing machine for your production line? Jiangsu EQS Machinery Co., Ltd. specializes in innovative and efficient bottle washing solutions. Visit their website to learn more about their products and how they can enhance your production efficiency and hygiene standards.
